Document ID# 883227
1998 Saturn SL2/SC2/SW2

Secondary Air Injection (AIR) Vacuum Harness Replacement

Removal Procedure

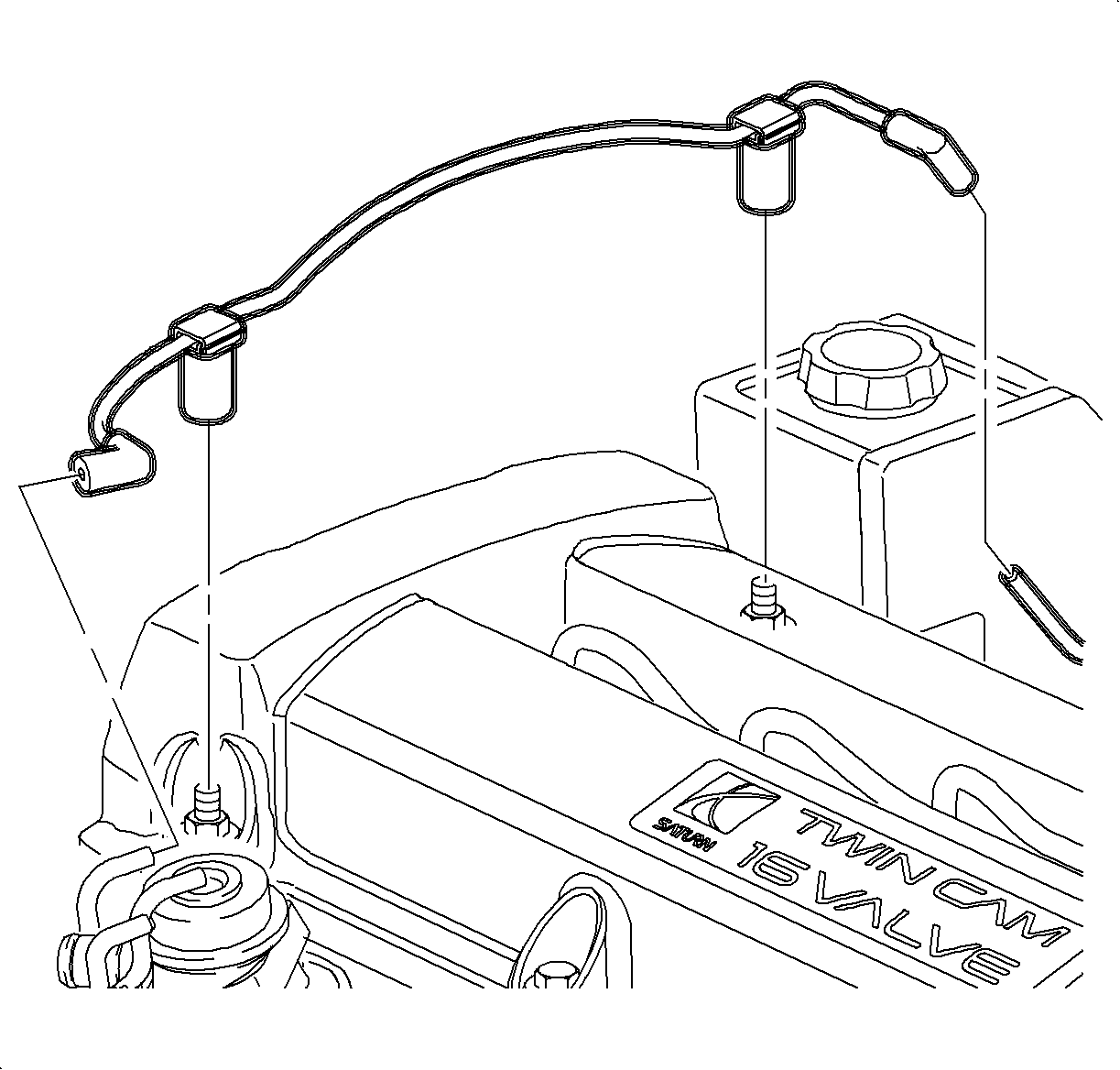

    Object Number: 873642 Size: SH
    Click here for detailed picture of above image.
  1. Remove the vacuum line from the check valve.
  2. Remove the vacuum harness mounting clips from the cam shaft cover studs.
  3. Remove the vacuum line from the throttle body harness.
Installation Procedure

    Object Number: 873642 Size: SH
    Click here for detailed picture of above image.
  1. Install the vacuum harness mounting clips onto the cam shaft cover studs.
  2. Install the vacuum line into the throttle body harness.
  3. Install the vacuum line onto the check valve.
