Energy Absorber Pad Replacement - Inner Front Coupe

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

Caution

If energy absorber is removed or damaged it must be replaced with a new part. If omitted, the vehicle will not meet federal motor vehicle safety standards (FMVSS), subjecting the retailer to possible civil penalties for making the vehicle inoperative to the FMVSS, and increasing the risk of injury to the vehicle occupants.

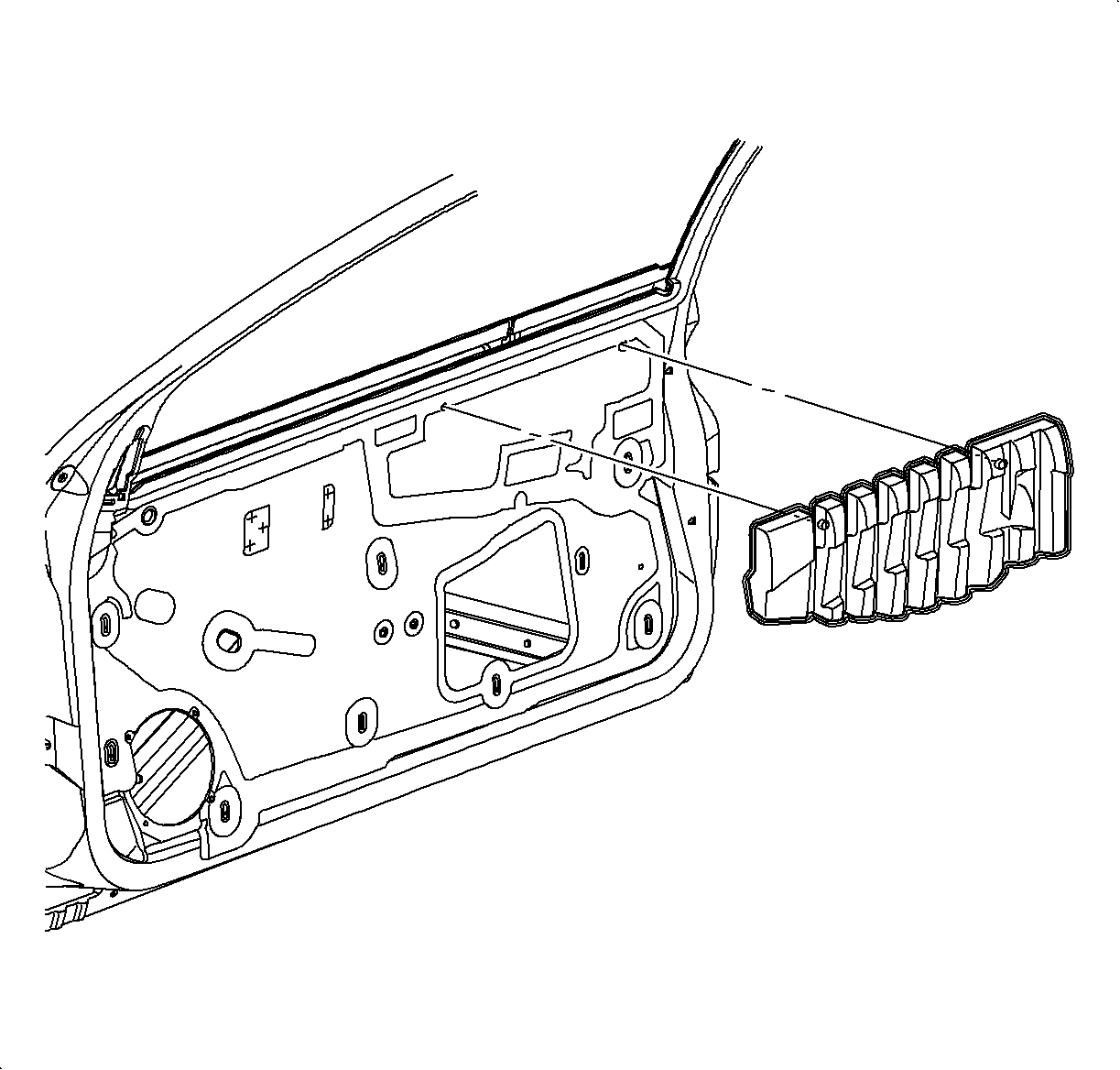

2. Remove the energy absorber from the door structure.

Installation Procedure

1. Remove the tape backing and affix to the door structure.
2. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
