Cylinder Head Assemble

SA9102E-A Valve Seal Remover/Replacer

1. Clean all parts. Coat the 3 oil gallery plugs with Saturn P/N 21485277, LOCTITE 242® Threadlocker or equivalent, and install them using a standard driver, if removed.

Notice

Do not depress the spring cap too far as it will cause valve stem seal and valve stem damage.

Important

After each valve is installed, oil the valve guide with clean engine oil and stem before installing the valve stem seal. If a valve stem seal is removed, it must be discarded.

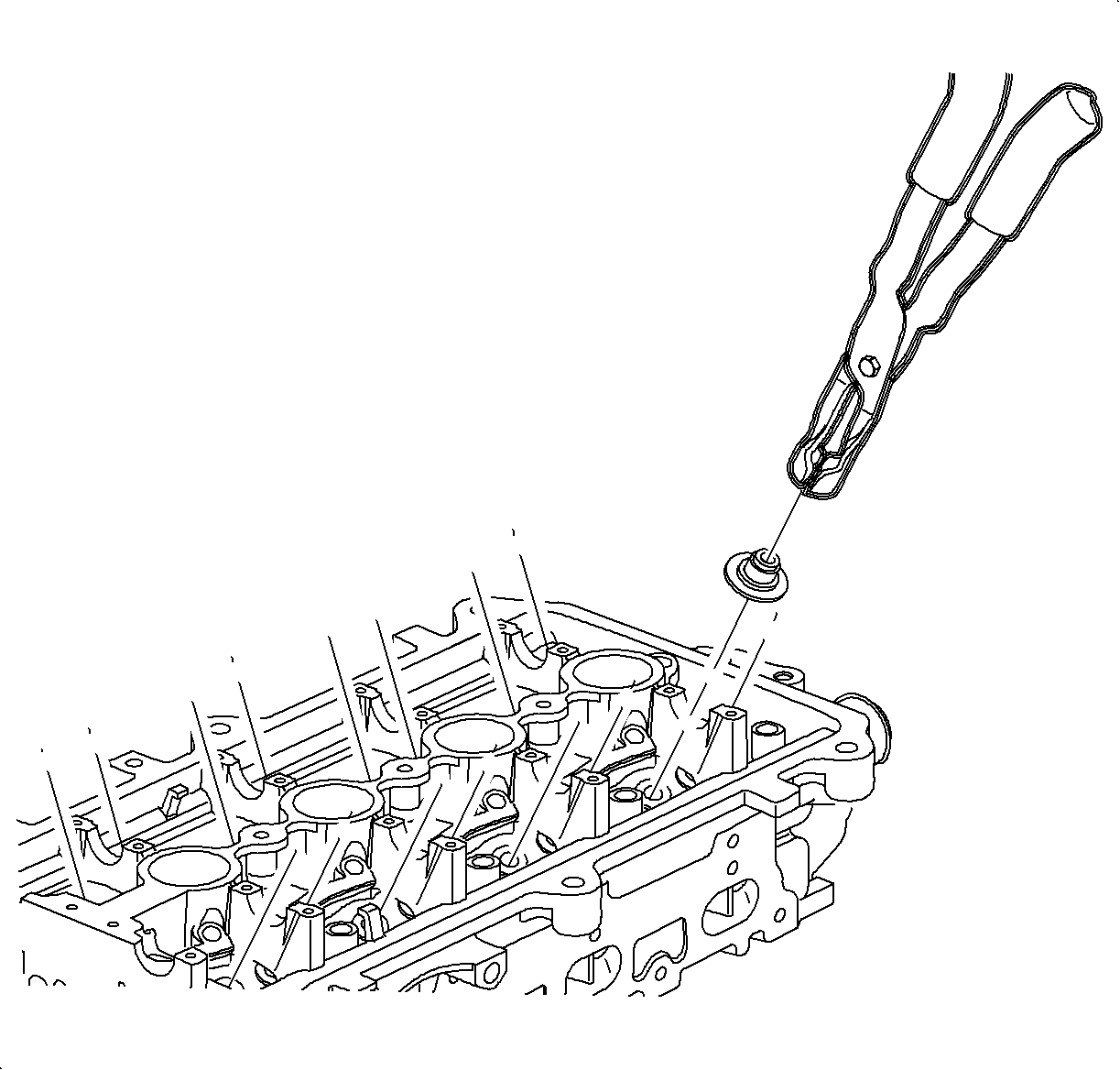

1. Install new valve stem seals using the SA9102E-A . Do not oil the seal's inner diameter where it contacts the guide.

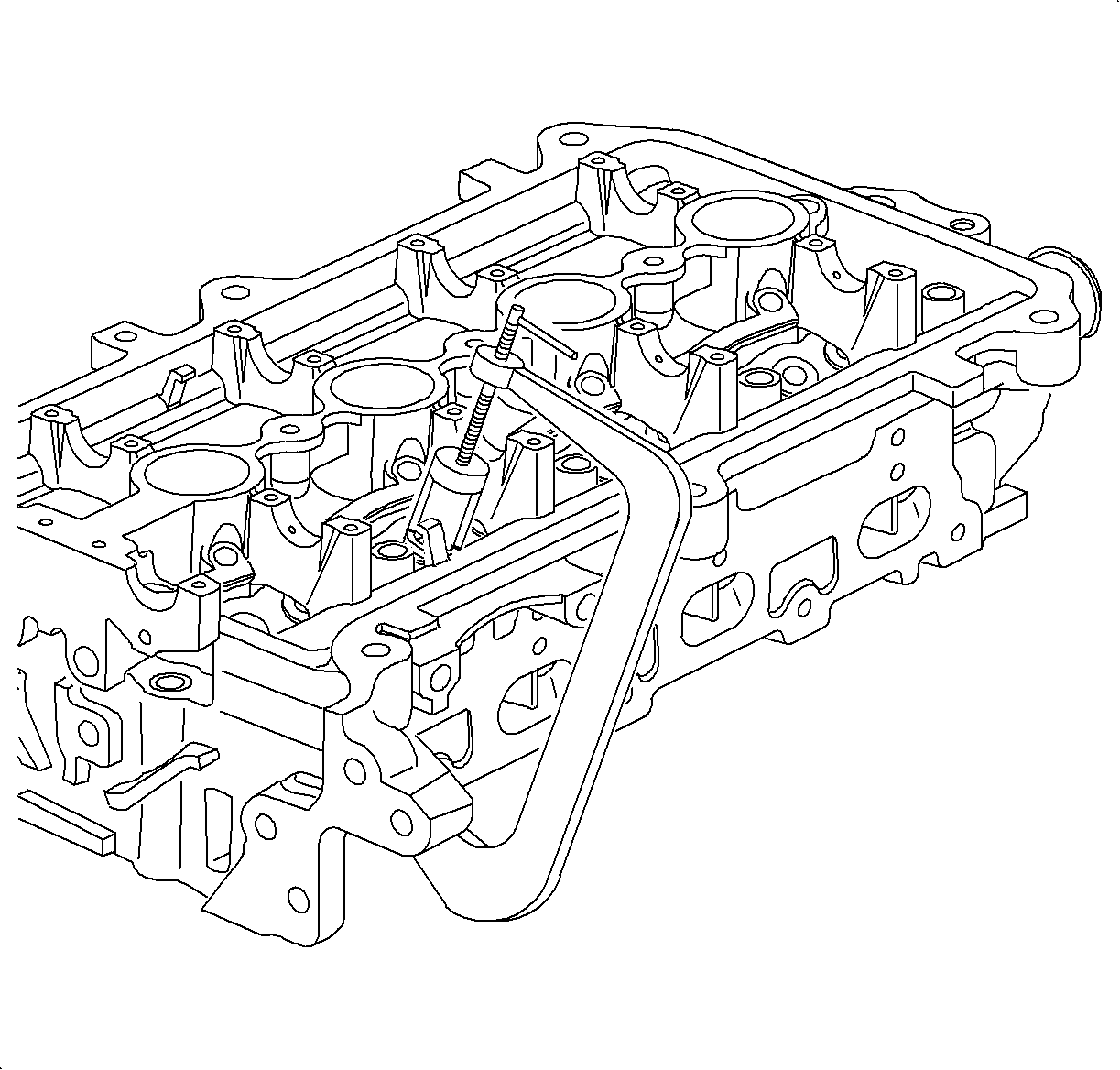

2. Oil the valve stems and install the valves, springs, caps, and retainers.




2. Fill the hydraulic lash adjusters with clean engine oil using an oil squirt can, lubricate the lash adjuster body, and install them in their proper locations.

Notice

The dowel pin in each camshaft must be located at the 12 o'clock position during installation to prevent valve and piston damage.

3. Assemble the rocker arms over the lash adjusters and valve stems.

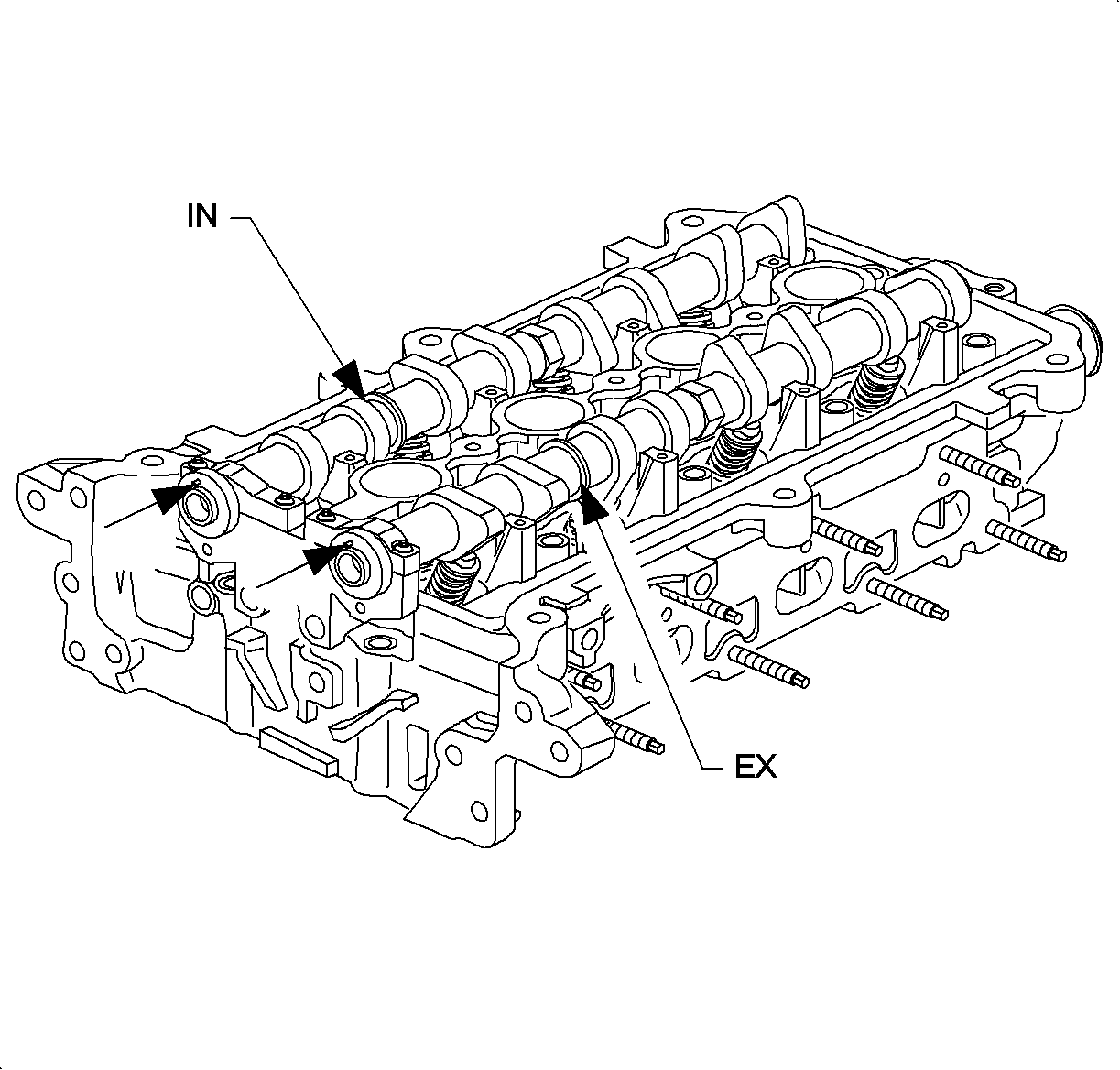

4. Oil the camshafts, lobes, and journals, and install each in the cylinder head with the dowel pin at the 12 o'clock position.

• Important

  Camshafts are identified IN, at the intake and manifold side of the engine, and EX, at the exhaust side of the engine. If camshafts are installed at the wrong location, the following will occur.

  The oil baffles in the cam cover will interfere with the camshaft and the cam cover will not assemble properly. Noise will be evident upon engine operation.
• DTC P0172, system rich, is likely to set.
• Poor engine performance at throttle tip-in will be evident.
•




  Notice

  Fully tightening down one bearing cap at a time will break the camshaft and damage the cylinder head cam bearings surfaces or damage the cap bolt threads.

  The forward bearing caps are used to control thrust: the camshafts must be positioned fully forward prior to their installation.

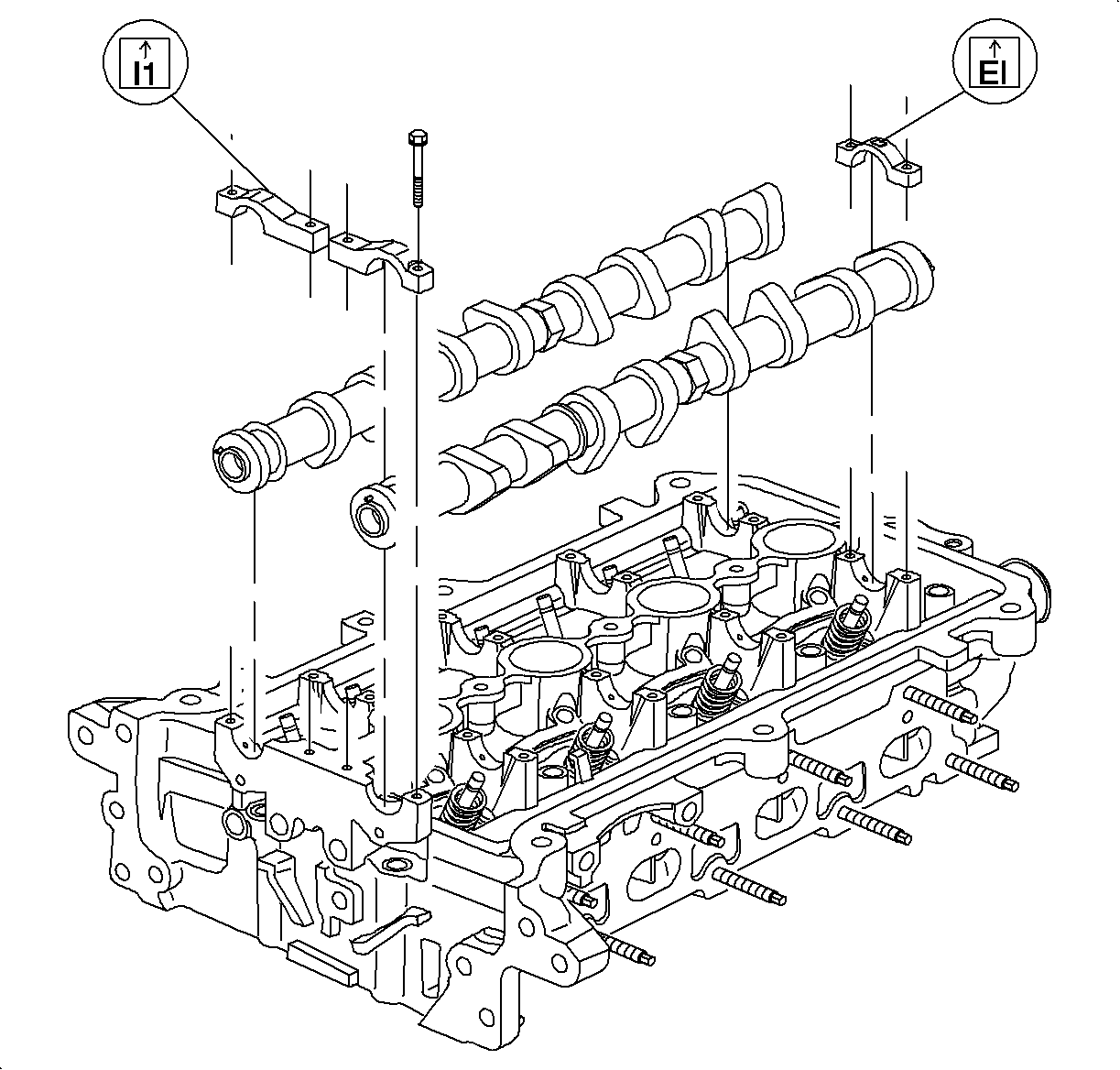

• Install all the bearing caps on each camshaft with arrows pointed toward the camshaft sprockets. The camshaft bearing caps are numbered and have an I for the intake side and an E for the exhaust manifold side stamped on them. Tighten the caps down uniformly. Tighten

  Tighten the caps to 14 N·m (124 lb in).






Important

Make sure all gasket surfaces are clean when installing manifolds and cylinder head assembly.

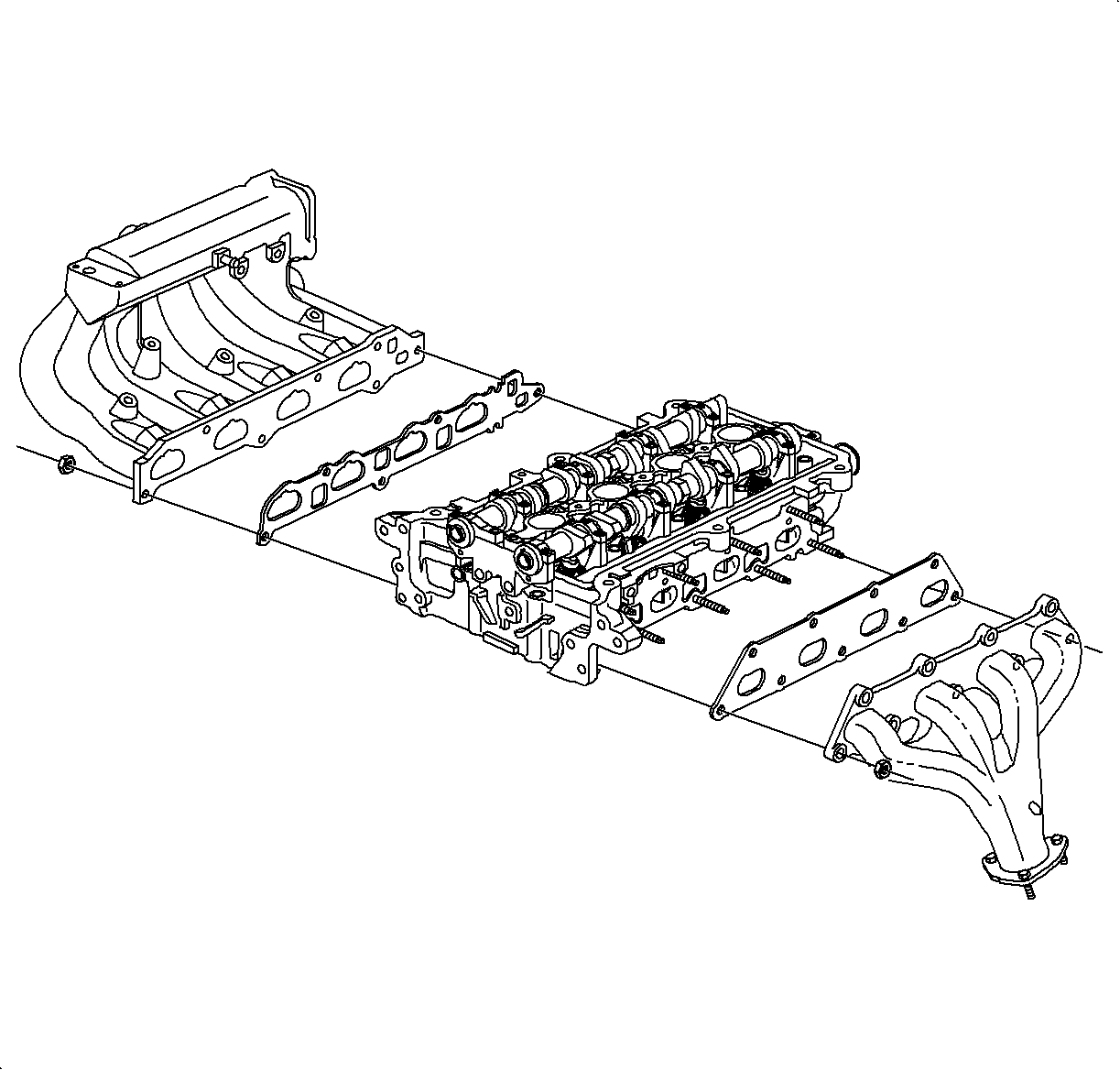

5. Install the intake manifold using a new intake manifold gasket. Tighten the nuts in the following sequence: 7, 5, 4, 2, 1, 3, 6.
Tighten

Tighten the nuts to 30 N·m (22 lbs ft).

6. Install the exhaust manifold using a new exhaust manifold gasket. Tighten the nuts in the following sequence: 9, 6, 5, 2, 1, 3, 4, 7, 8.
Tighten

Tighten the nuts to 17 N·m (150 lbs in).
