Document ID# 881806
1998 Saturn SL2/SC2/SW2

Weatherstrip Replacement - Liftgate

Removal Procedure

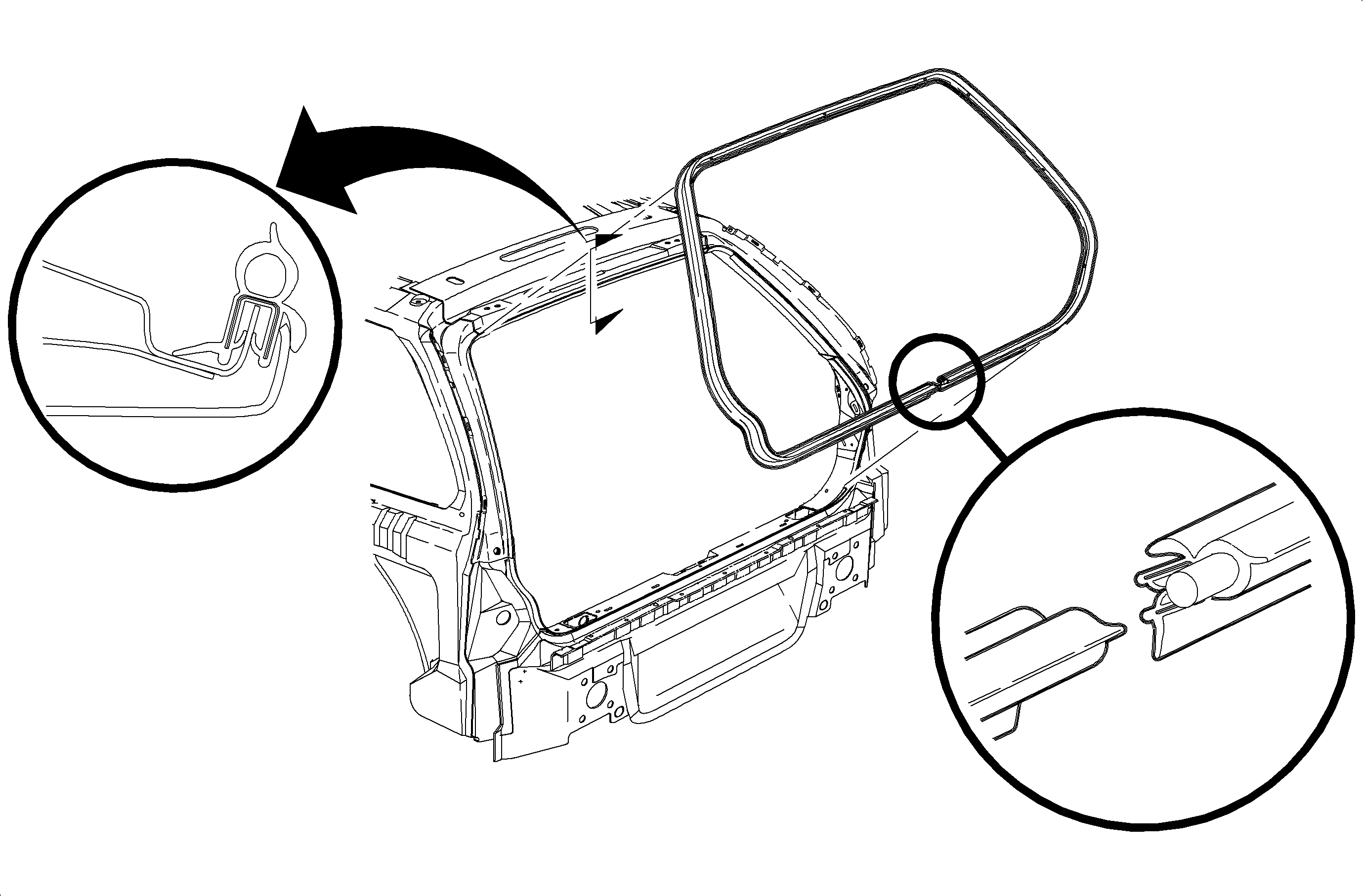

    Object Number: 865787 Size: MF
    Click here for detailed picture of above image.
  1. Remove the lift gate opening interior sill trim.
  2. Remove the seal from the lift gate opening flange.
Installation Procedure
  1. Install the primary seal on the lift gate flange with the sealing lip toward the inside of the opening. The seal joint should align with the lower center of the lift gate opening.
  2. Replace the lift gate opening interior sill trim.
