Document ID# 869029
1998 Saturn SL2/SC2/SW2

Air Outlet Replacement - Rear Floor Coupe

Removal Procedure

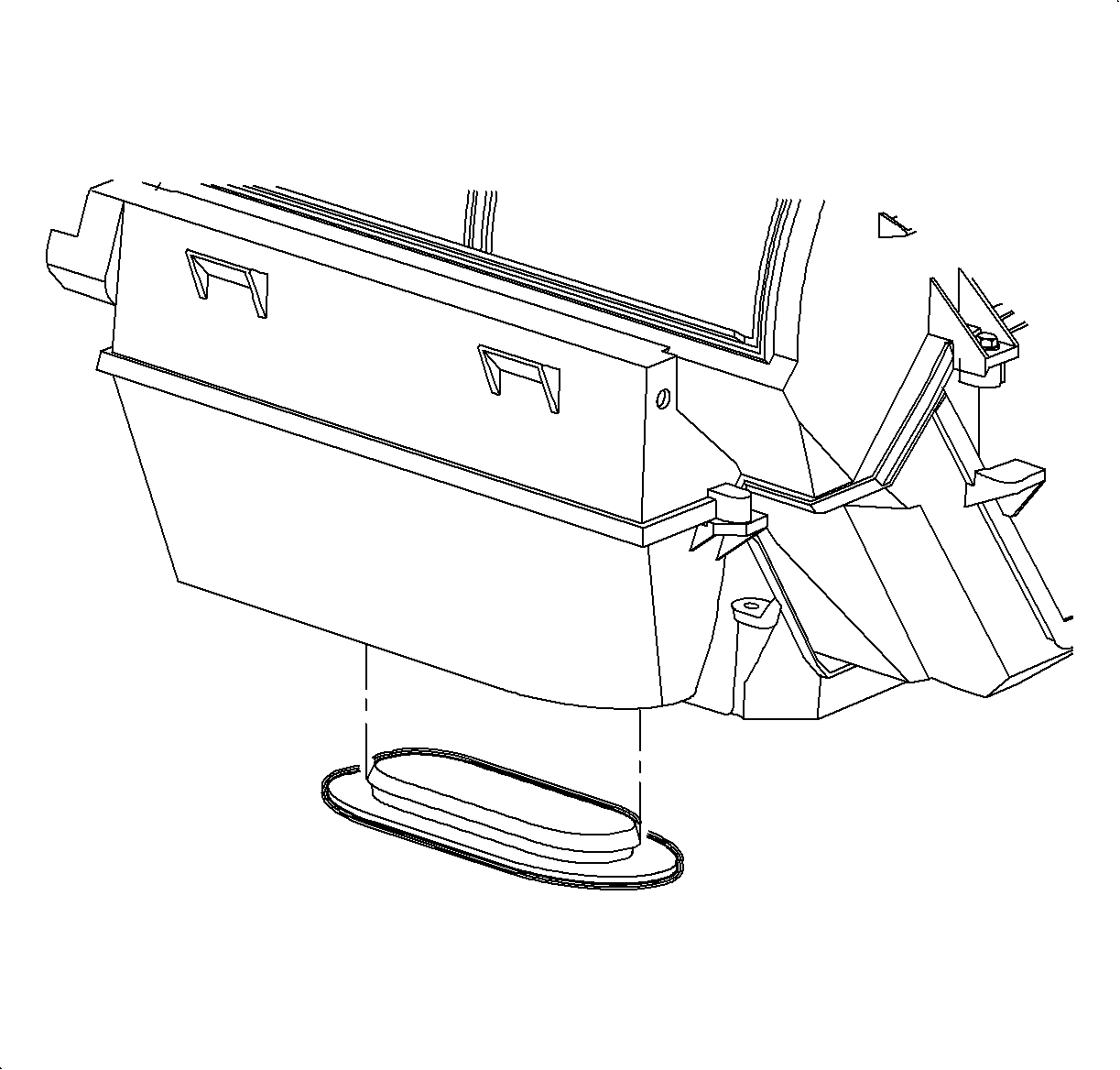

    Object Number: 859839 Size: SH
    Click here for detailed picture of above image.
  1. Using a small flat blade screwdriver, pry the plug from the bottom of the heater duct.
  2. Remove the plug from the heat duct.
Installation Procedure

    Object Number: 859839 Size: SH
    Click here for detailed picture of above image.
  1. Position the plug to the heater duct.
  2. Push the plug into the opening.
