Document ID# 879907
1998 Saturn SL2/SC2/SW2

Molding Replacement - Rocker Panel Sedan/Wagon

Removal Procedure

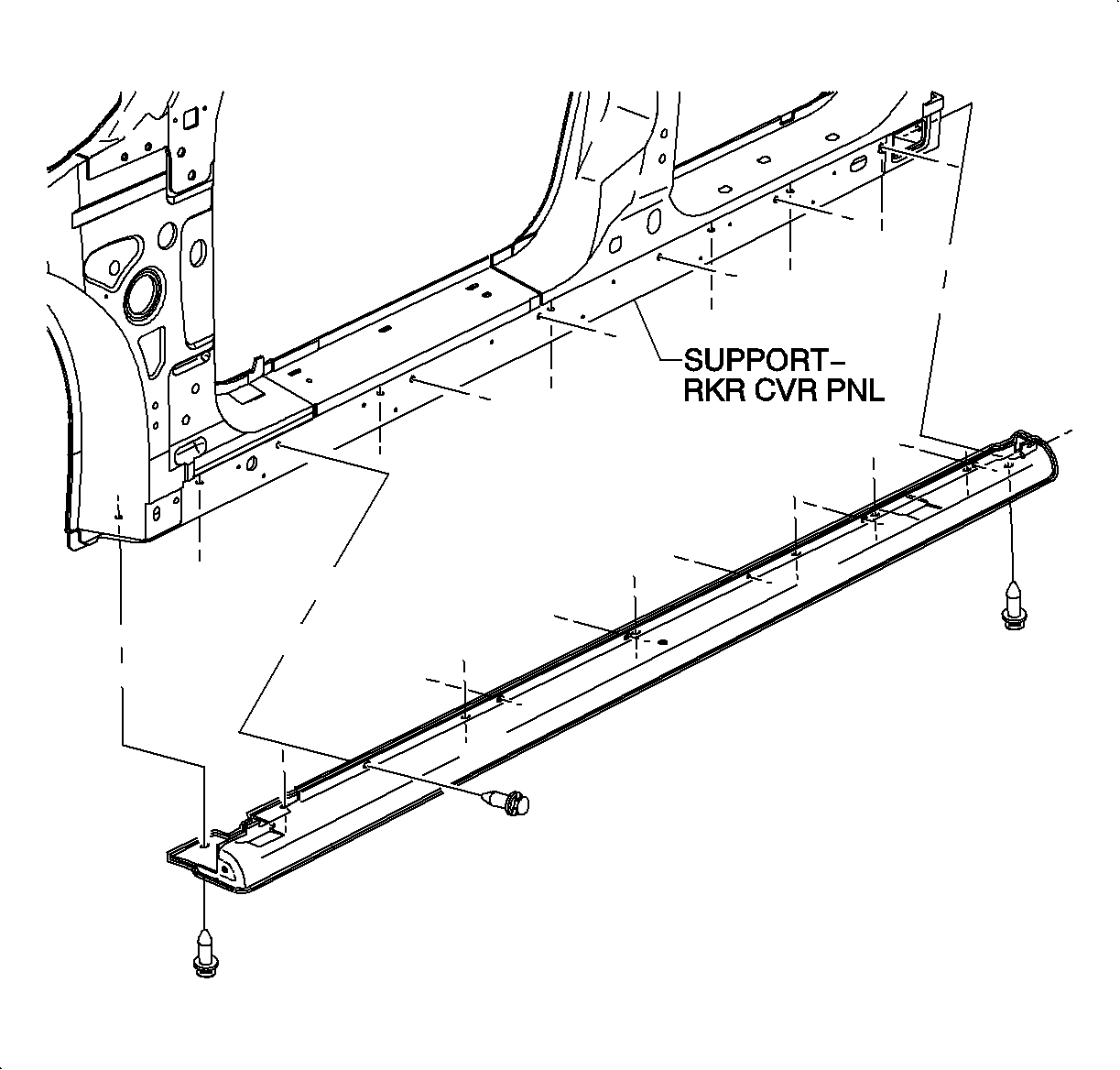

    Object Number: 864454 Size: SH
    Click here for detailed picture of above image.
  1. Remove the plastic fasteners along the top and bottom of the rocker panel molding.
  2. Remove the plastic fasteners from the rear wheelhouse liner to rocker panel molding.
  3. Remove the plastic fasteners from the front wheelhouse liner to rocker panel molding.
  4. Rotate the rocker panel molding out and down to remove.
Installation Procedure
  1. Position the rocker panel molding to the body.
  2. Install the plastic fasteners along the top and bottom of the rocker panel molding.
  3. Install the plastic fasteners from the rear wheelhouse liner to rocker panel molding.
  4. Install the plastic fasteners from the front wheelhouse liner to rocker panel molding.
