ABS Connector End Views

Table 1:	ABS Control Module
Table 2:	ABS Control Module
Table 3:	ABS Motors
Table 4:	ABS Solenoid-Right Front
Table 5:	ABS Solenoid-Left Front
Table 6:	ABS Wheel Speed Sensor-Right Front
Table 7:	Wheel Speed Sensor-Left Front
Table 8:	Wheel Speed Sensor-Right Rear
Table 9:	Wheel Speed Sensor-Left Rear
Table 10:	Brake Switch
Table 11:	Brake Switch
Table 12:	Low Brake Fluid Switch
Table 13:	Park Brake Switch

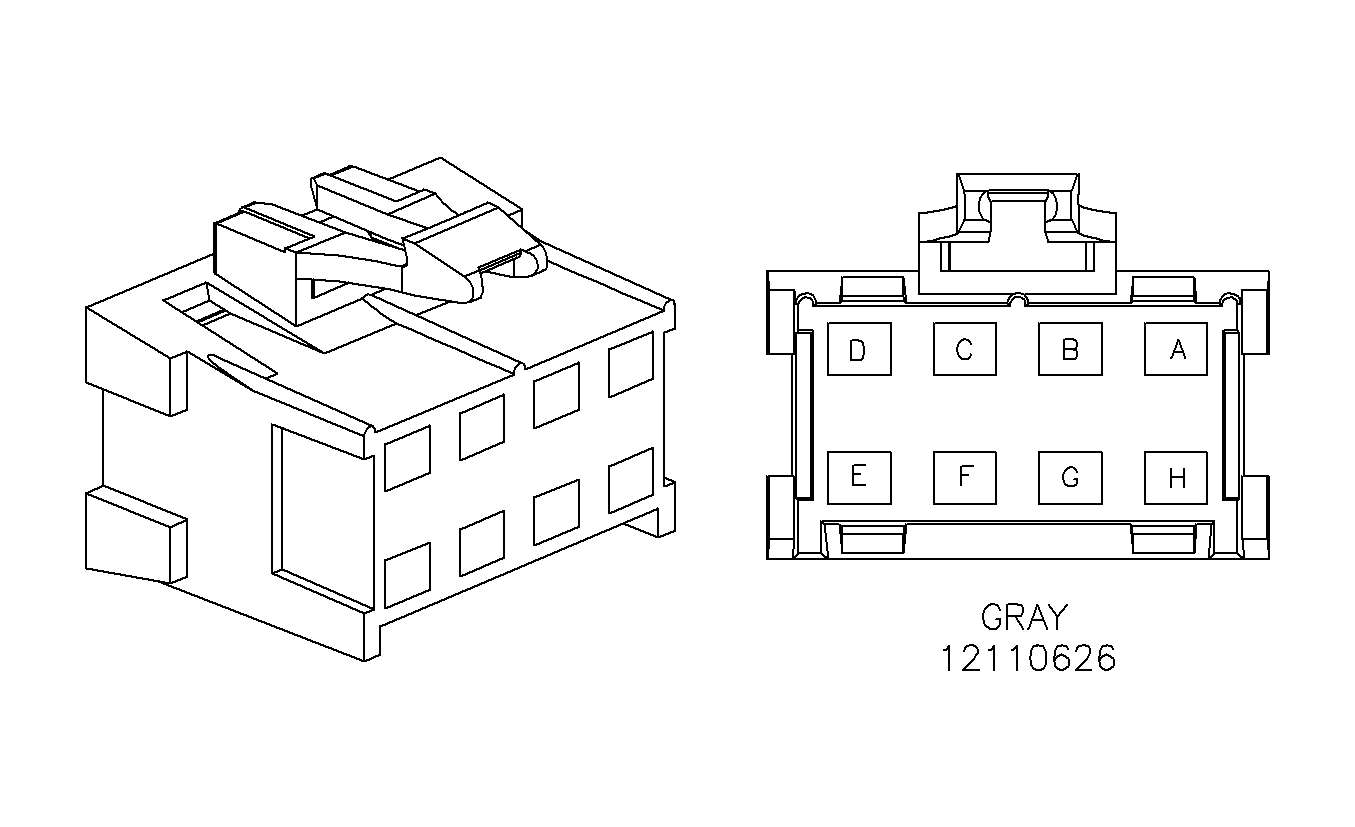

ABS Control Module


Connector Part Information		12110626 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PPL	1282	2.0	RF+MOTOR
B	BLK	1283	2.0	RF-MOTOR
C	RED	1633	3.0	SWITCH BATT
D	BLK	250K	3.0	GROUND
E	ORN	1285	2.0	REAR-MOTOR
F	DK GRN	1284	2.0	REAR+MOTOR
G	BLK	1280	2.0	LF+MOTOR
H	PNK	1281	2.0	LF-MOTOR
Location: I/P - Lower Left

ABS Control Module


Connector Part Information		12110088 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A1	PPL	1807B	.35	CLASS 2 DATA
A2	WHT	883CG	.35	RR+WHEEL SENSOR
A3	RED	885CF	.35	LR+WHEEL SENSOR
A4	TAN	833CE	.35	RF+WHEEL SENSOR
A5	LT BLU	830CB	.35	LF+WHEEL SENSOR
A6	LT GRN	1656	.35	TRAC ACTIVE TT CONTROL
A7	LT GRN/BLK	875	.35	ABS TT CONTROL
A8	--	--	--
A9	BRN	641B	.35	IGN 3
A10	DK GRN	1288	.80	LF SOLENOID
A11	PNK	1632	.35	ABS ENABLE
A12	--	--	--
B1	BRN	882CG	.35	RR-WHEEL SENSOR
B2	BLK	884CF	.35	LR-WHEELSENSOR
B3	DK GRN	872CE	.35	RF-WHEEL SENSOR
B4	YEL	873CB	.35	LF-WHEEL SENSOR
B5	TAN/WHT	33E	.35	BRAKE TT CONTROL
B6	LT BLU	1289	.80	RF SOLENOID
B7	--	--	--
B8	--	--	--
B9	LT BLU	20G	.50	BRAKE SW
B10	--	--	--
B11	PPL/WHT	1572	.35	TRACTION SWITCH ENABLE
B12	ORN	640A	.35	B+
Location: I/P -- Lower Left

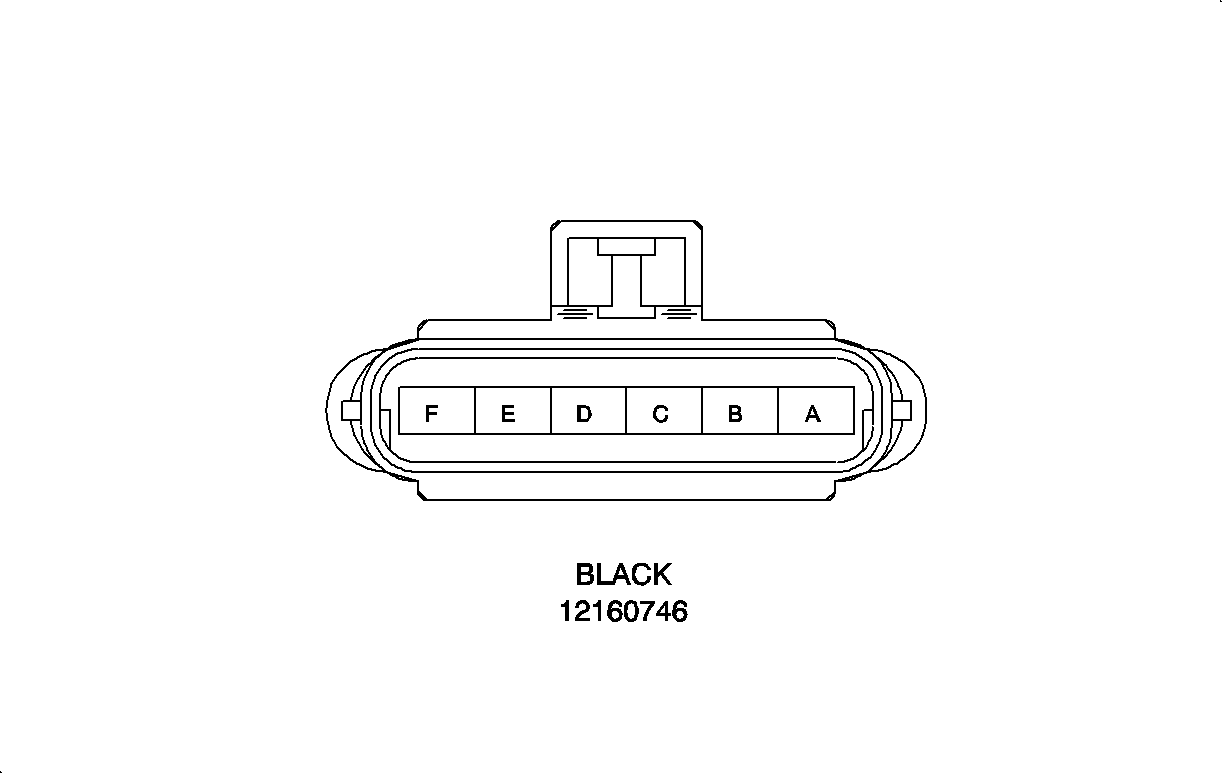

ABS Motors


Connector Part Information		12160746 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	1280	2.0	LF MOTOR
B	PNK	1281	2.0	LF MOTOR
C	DK GRN	1284	2.0	REAR MOTOR
D	ORN	1285	2.0	REAR MOTOR
E	PPL	1282	2.0	RF MOTOR
F	BLK	1283	2.0	RF MOTOR
Location: Engine Compartment -- Left Rear

ABS Solenoid-Right Front


Connector Part Information		12052641 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	1289	.80	TO CONTROLLER
B	ORN	855B	.80	TO UHJB B+

ABS Solenoid-Left Front


Connector Part Information		12052641 Black
Cavity	Wire Color	Circuit Number	Wire Size	CircuitFunction
A	DK GRN	1288	.80	TO CONTROLLER
B	ORN	855A	.80	TOUHJB B+
Location: Engine Compartment -- Left Rear

ABS Wheel Speed Sensor-Right Front


Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	872CX	.50	SENSOR TO CONTR
B	WHT	833CX	.50	SENSOR TO CONTR
Location: Right Front Wheel

Wheel Speed Sensor-Left Front

ptxt
Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	873CX	.50	SENSOR TO CONTR
B	WHT	830CX	.50	SENSOR TO CONTR
Location: Left Front Wheel

Wheel Speed Sensor-Right Rear

ptxt
Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BRN	882CP	.80	SENSOR TO CONTR
B	WHT	883CP	.80	SENSOR TO CONTR
Location: Right Rear Wheel

Wheel Speed Sensor-Left Rear

ptxt
Connector Part Information		12052644 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	884CR	.80	SENSOR TO CONTR
B	RED	885CR	.80	SENSOR TO CONTR
Location: Left Rear Wheel

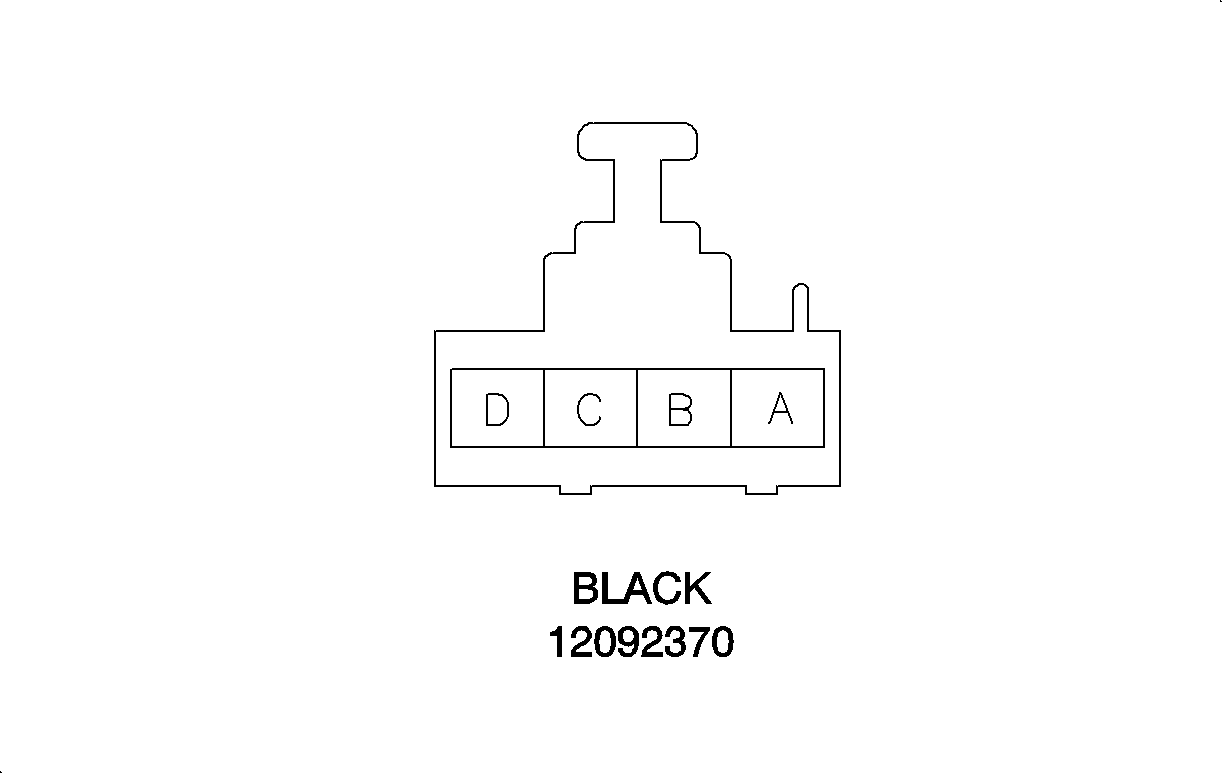

Brake Switch


Connector Part Information		12092370 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	PNK	139H	.35	IGN 1 FROM TURN FUSE
B	BRN	341F	.35	IGN 3 FROM CRUISE FUSE
C	LT BLU	20F	.50	STOP LAMPS
D	LT BLU	20H	.50	CHMSL
Location: Brake Pedal

Brake Switch


Connector Part Information		12092371 Gray
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	ORN	540	.50	B+ FROM BRAKE FUSE
B	LT BLU	20G	.50	ABS-CONTROLLER
C	BRN BRN	86A 86B	.35 .35	CRUISE CONT MOD PCM
D	DK GRN/WHT	1135	.35	BTSI SOLENOID
Location: Brake Pedal

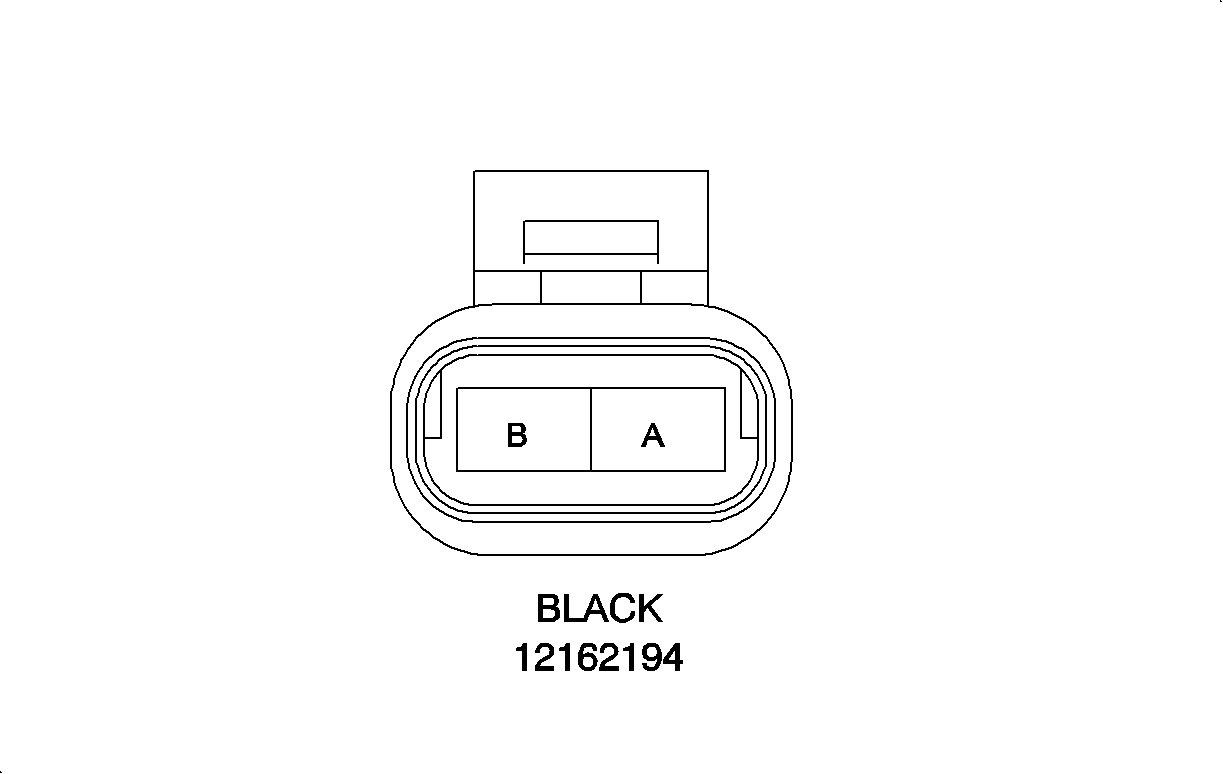

Low Brake Fluid Switch


Connector Part Information		12162194 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	BLK	350PP-W/O ABS 350P-W/ ABS	.50	GROUND
B	TAN/WHT	33CC-W/O ABS 33C-W/ ABS	.50	BRAKE TT
Location: Engine Compartment-Left Rear

Park Brake Switch

ptxt
Connector Part Information		12064758 Black
Cavity	Wire Color	Circuit Number	Wire Size	Circuit Function
A	LT BLU	1134	.35	BRAKE TT
B	--	--	--	--
C	BLK	350S	.50	GROUND
Location: Console
