1998 Saturn SL2/SC2/SW2

Automatic Recirculation Switch Replacement Bulb

richpin06a Replacing temperature slider bulb and AC/REC button bulbs

Removal Procedure

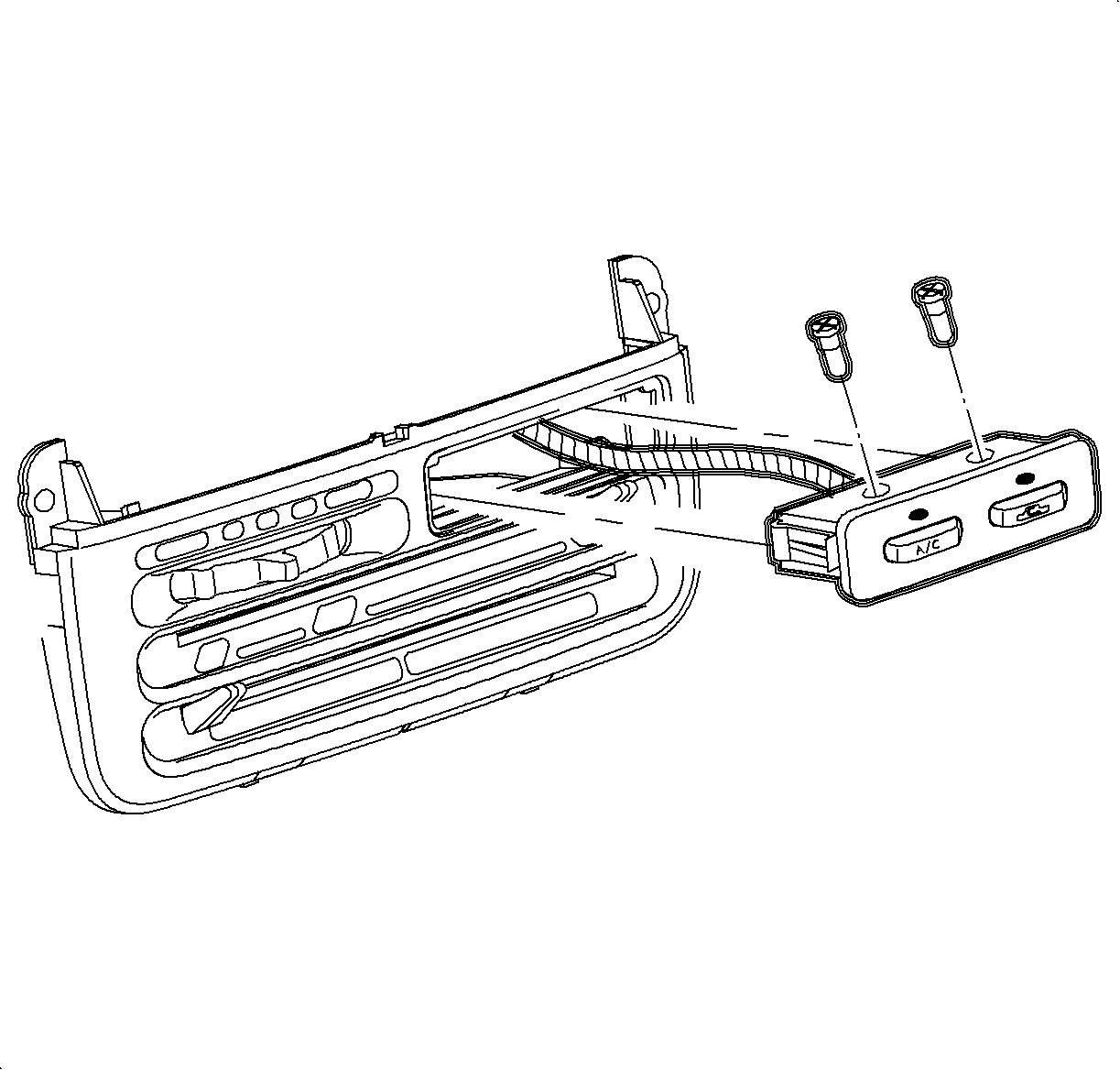

    Object Number: 903903 Size: SH
    Click here for detailed picture of above image.
  1. Remove the A/C-Recirc switch package by lifting at the outer edge with a small screwdriver.
  2. Turn the bulb socket counterclockwise and remove.
Installation Procedure

    Object Number: 903903 Size: SH
    Click here for detailed picture of above image.
  1. Insert the bulb into the opening and turn the clockwise to lock.
  2. Install the A/C-Recirc switch package through the opening and push straight in.
