Evaporative Emission (EVAP) Canister Purge Solenoid Valve Replacement SOHC

richpin06a EVAP Purge Solenoid Removal

Removal Procedure

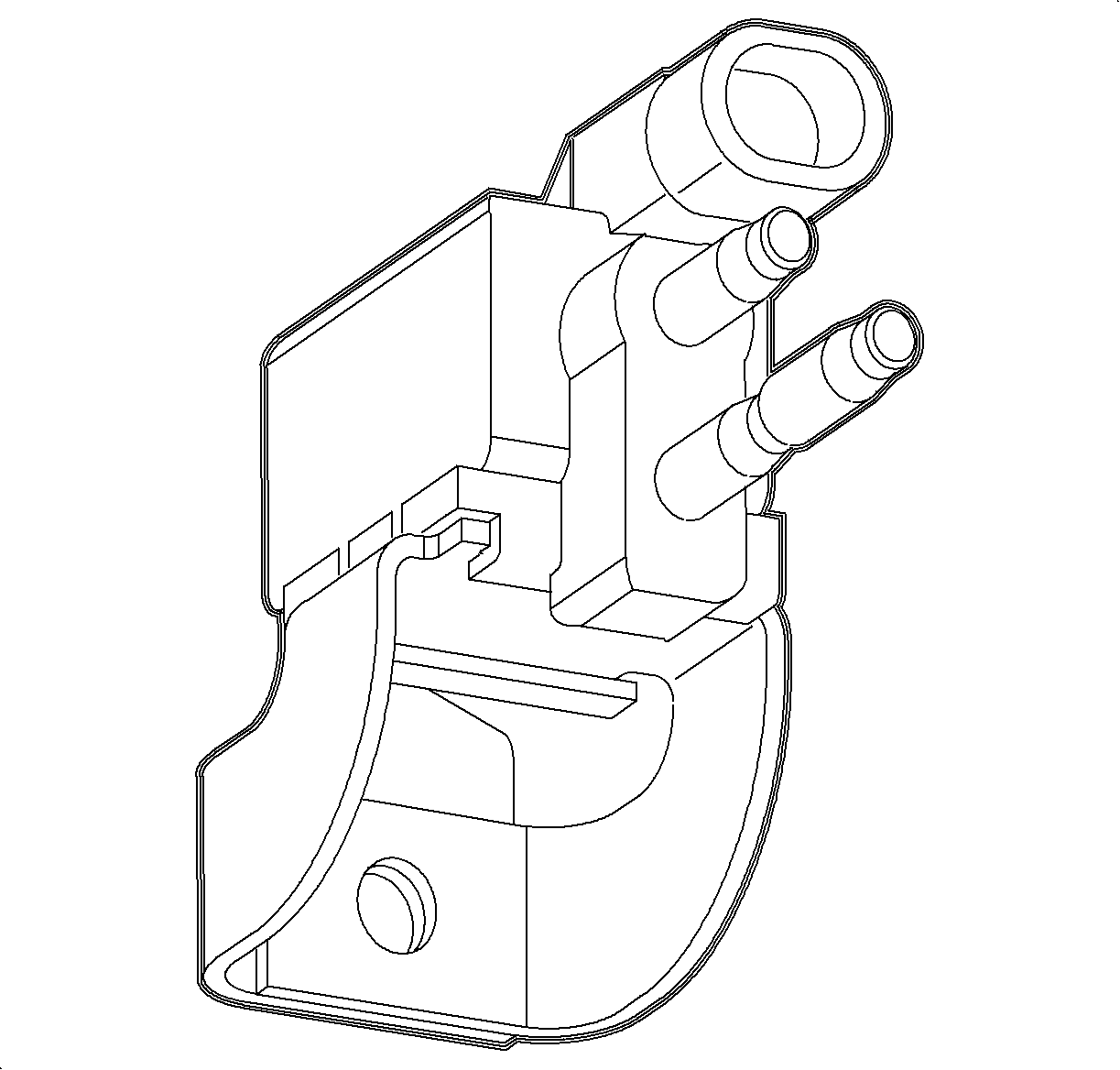

The EVAP purge solenoid is located to the rear of the engine block, below the intake manifold above the starter solenoid.

1. Record the preset radio stations.
2. Turn the ignition OFF.
3. Disconnect the negative battery cable.

Caution

Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.

4. Raise the vehicle.
5. Disconnect the EVAP purge solenoid harness connector.
6. Disconnect the vacuum line from the EVAP purge solenoid.
7. Disconnect the purge line quick connect from the EVAP purge solenoid.
8. Remove the 10 mm attachment bolt and remove the solenoid.

Installation Procedure

Notice

Refer to Fastener Notice in Cautions and Notices.





1. Install the EVAP purge solenoid and the attachment bolt.
Tighten

Tighten the canister purge solenoid-to-block bolt to 22 N·m (16 lb ft).

Important

Make sure the purge quick connect is seated and a "click" is heard. Pull back to confirm a positive engagement.

2. Connect the purge line quick connect and the vacuum hose to the solenoid.
3. Connect the EVAP purge solenoid harness connector. Push in the connector until a click is heard and pull back to confirm a positive engagement.
4. Lower the vehicle.
5. Connect the negative battery cable.
6. Reset the clock and the preset radio stations.
