Wedge Replacement - Rear Door

Removal Procedure

1. Open the lift gate.

Notice

Cover tool with tape to protect trim panel.

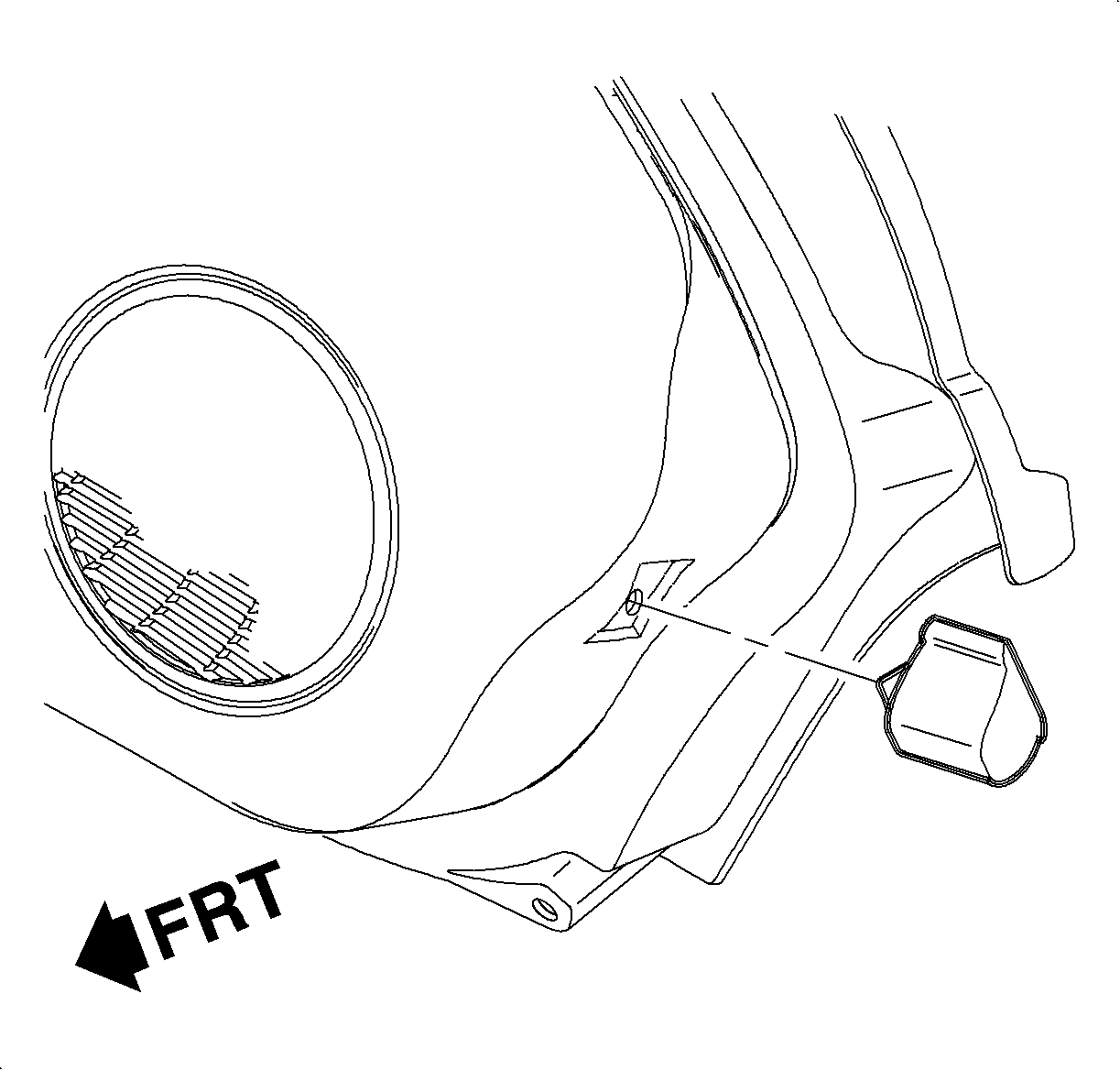

2. Remove the wedge plate by carefully prying from the lift gate surface.

Installation Procedure

1. Position the wedge plate on the lift gate.
2. Install by pushing in the wedge plate openings with a small screwdriver.
3. Close the lift gate.
