Document ID# 881784
1998 Saturn SL2/SC2/SW2


Strut Replacement - Liftgate

Removal Procedure

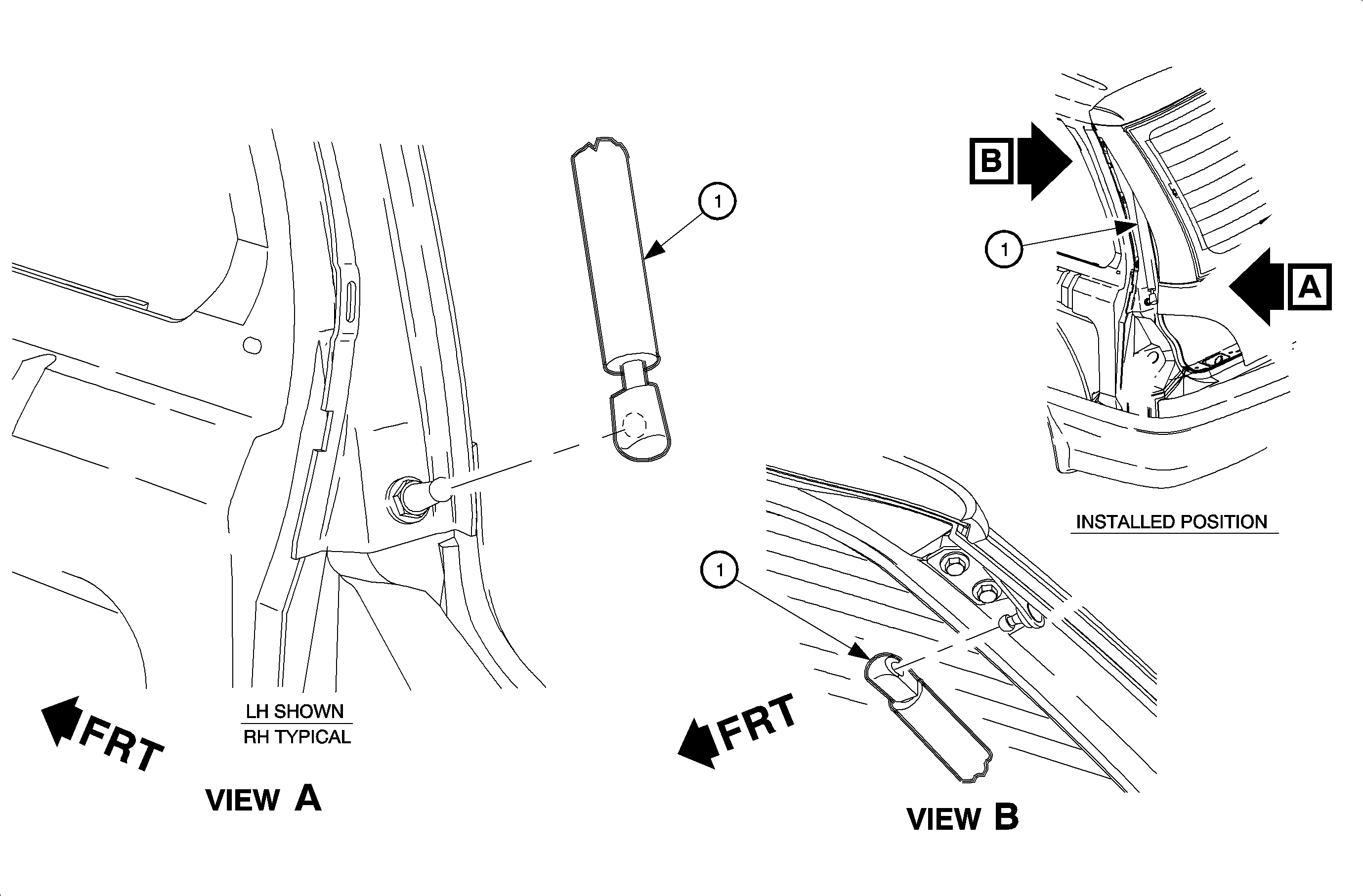

    Object Number: 865814  Size: MF
    Click here for detailed picture of above image.

    Important

    The lift gate must be supported when removing 1 or both hinges and/or struts. Remove 1 hinge at a time.

  1. Open the lift gate and support.
  2. Important

    The spring clip should not be removed.

  3. Using a small screwdriver, carefully pry the spring clip back from the end of the strut.
  4. Remove the strut end from the strut anchor.
  5. Repeat the procedure for the other end and remove the strut.
Installation Procedure
  1. Align the strut end with the strut anchor and push on to attach.
  2. Remove the support and close the lift gate, inspecting for proper operation of the strut.
