High Mounted Stop Lamp Replacement Coupe

Removal Procedure

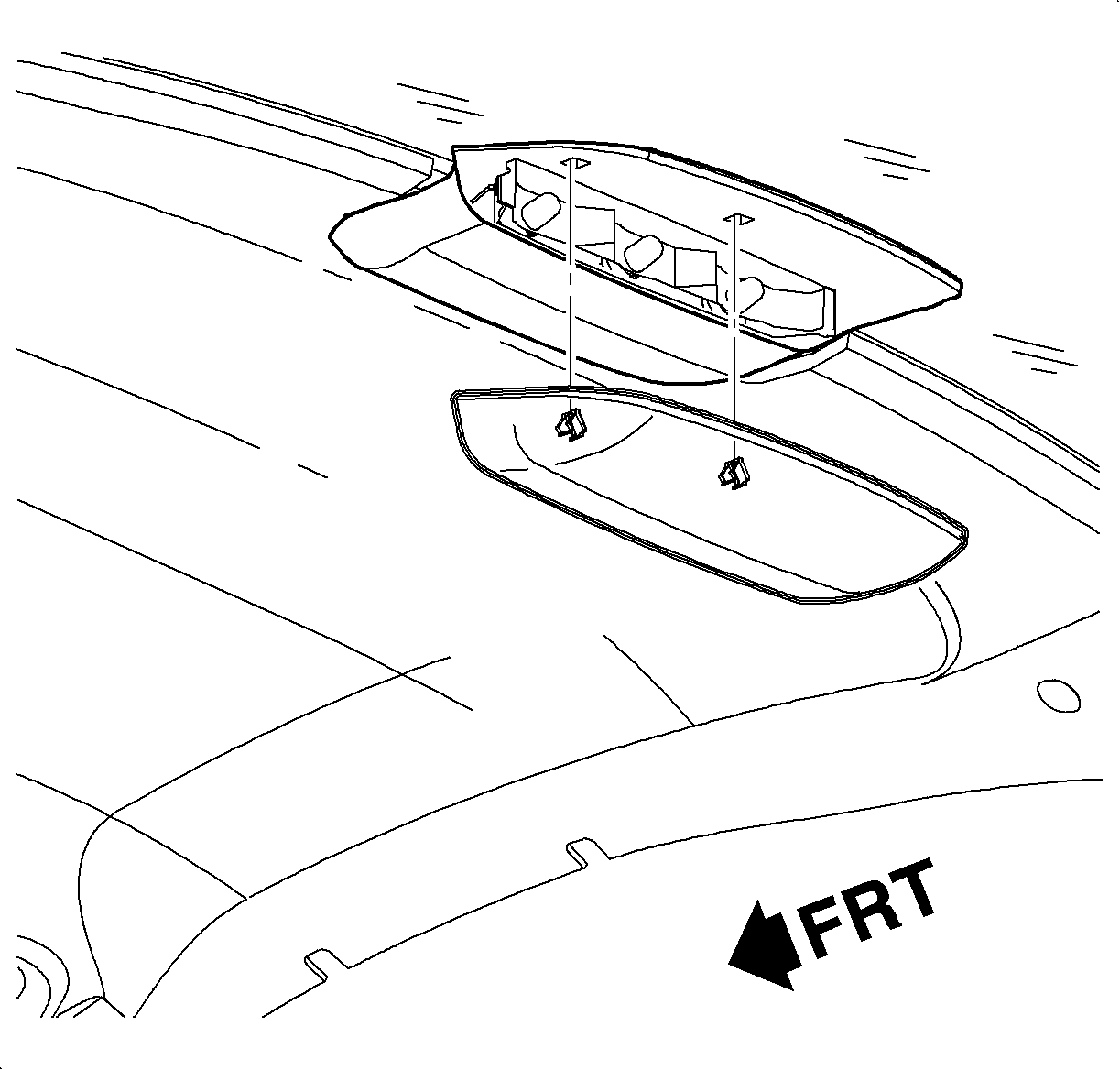

1. Remove the center high-mount stop lamp cover. Pull down by grasping the cover around the edges.

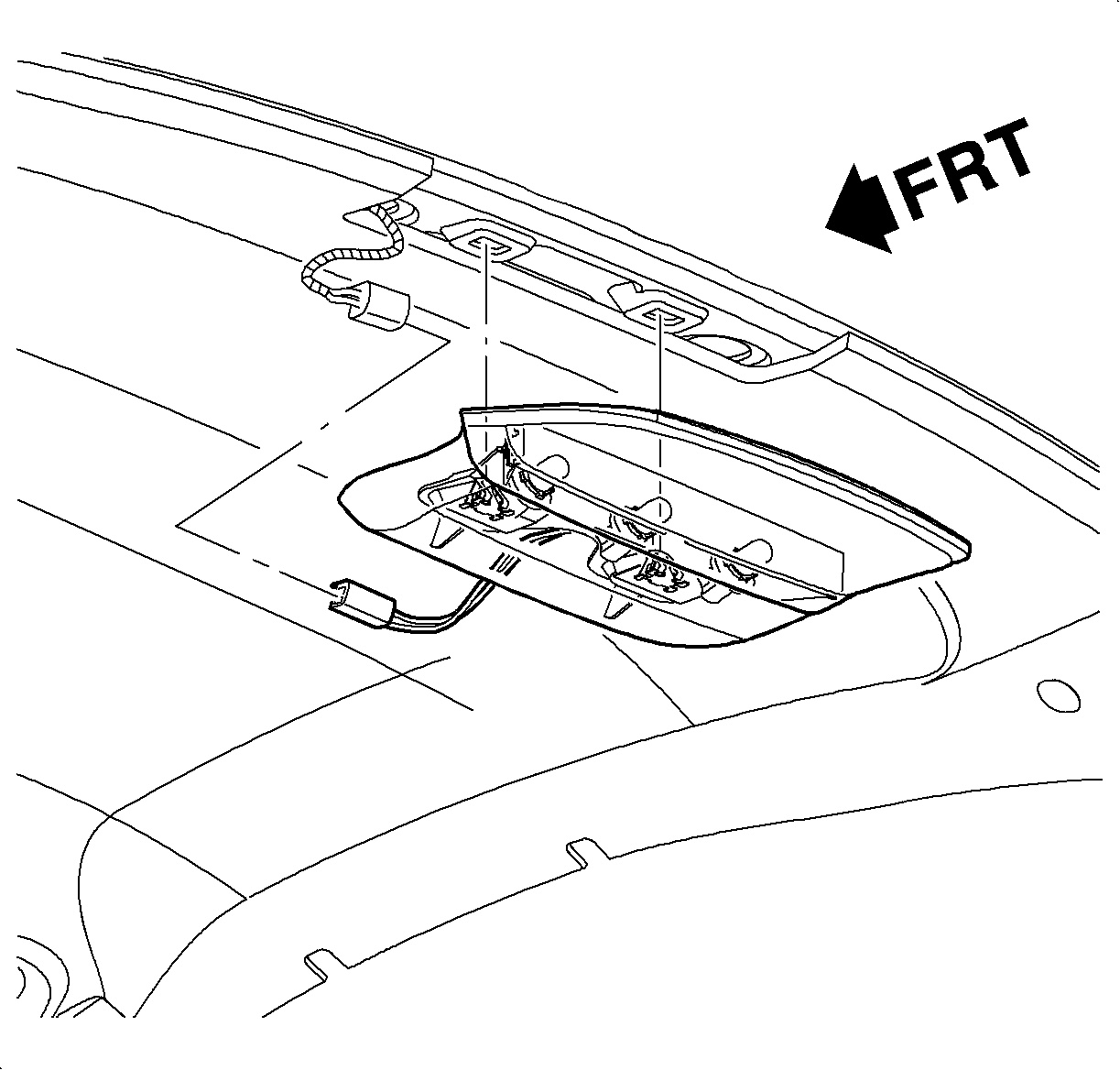

2. Disconnect the electrical harness only if removing the center high-mount stop lamp.
3. If removing the bulbs, twist the sockets out of the stop lamp and remove the bulbs.
4. Remove the center high-mount stop lamp by removing the retainer screws.

Installation Procedure

1. Install the center high-mount stop lamp with the screws.
2. Connect the electrical harness.




3. Install the cover by placing the tabs in the slots, then firmly press the cover into place.
