Document ID# 877310
1998 Saturn SL2/SC2/SW2

Drain Cock Replacement

Removal Procedure

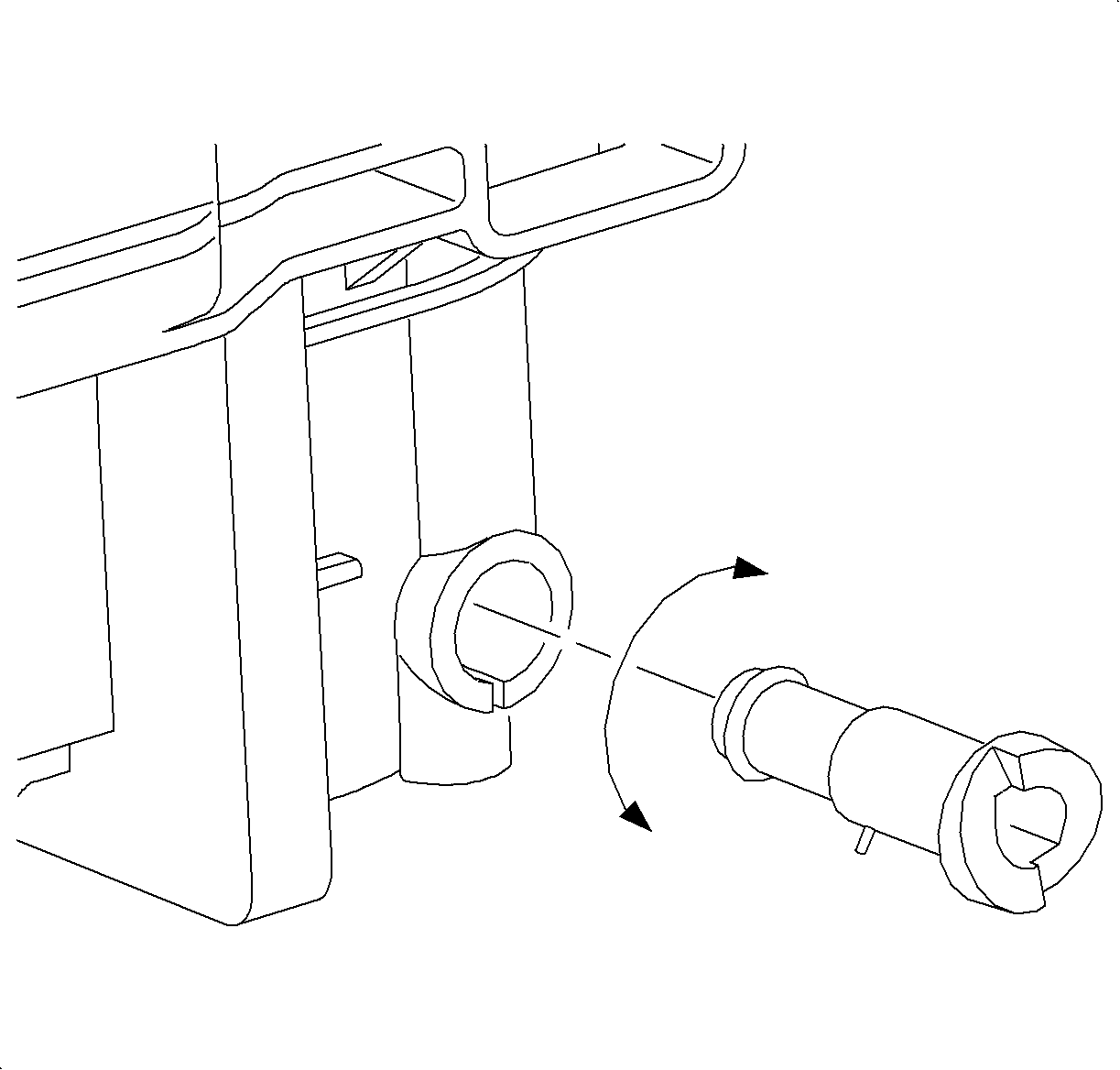

    Object Number: 873180 Size: SH
    Click here for detailed picture of above image.
  1. Unscrew the drain plug.
  2. Align the drain plug pin with the horizontal slot in the radiator end tank.
  3. Pull the drain plug straight out.
Installation Procedure

    Object Number: 873180 Size: SH
    Click here for detailed picture of above image.
  1. Lubricate the drain plug ring with coolant.
  2. Align the drain plug pin with the slot in the radiator end tank and push straight in.
  3. Turn the drain plug clockwise to close.
