1998 Saturn SL2/SC2/SW2

Rear Axle Upper Control Arm Replacement

Tools Required

KM-906B Bushing Remover/Installer Kit

Removal Procedure

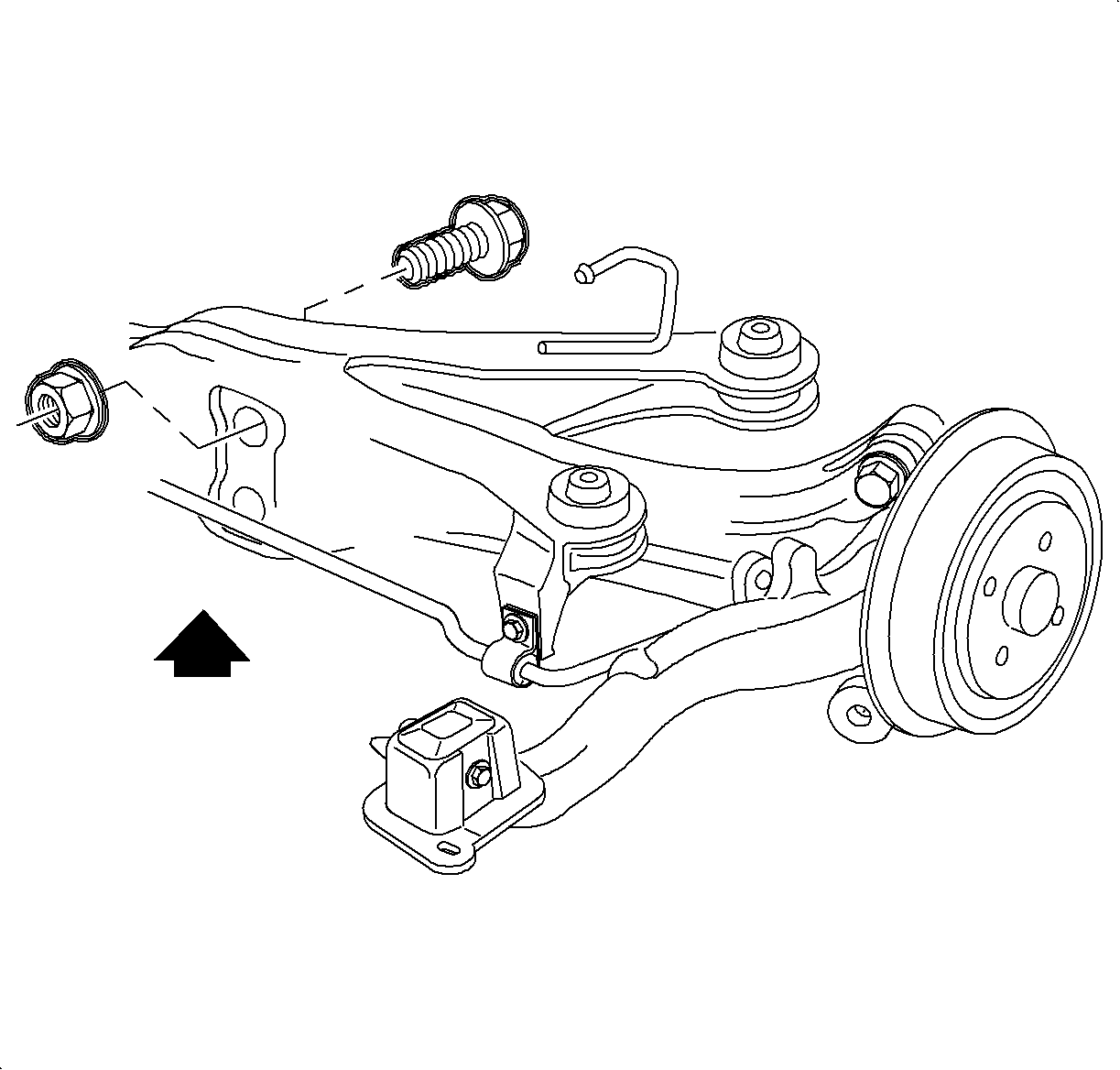

    Object Number: 891523 Size: SH
    Click here for detailed picture of above image.
  1. Remove the rear suspension support assembly.
  2. Remove the rear suspension control arm to the rear suspension support nut and bolt. Discard the nut and bolt.
  3. Remove the control arm from the suspension support.
Disassembly Procedure

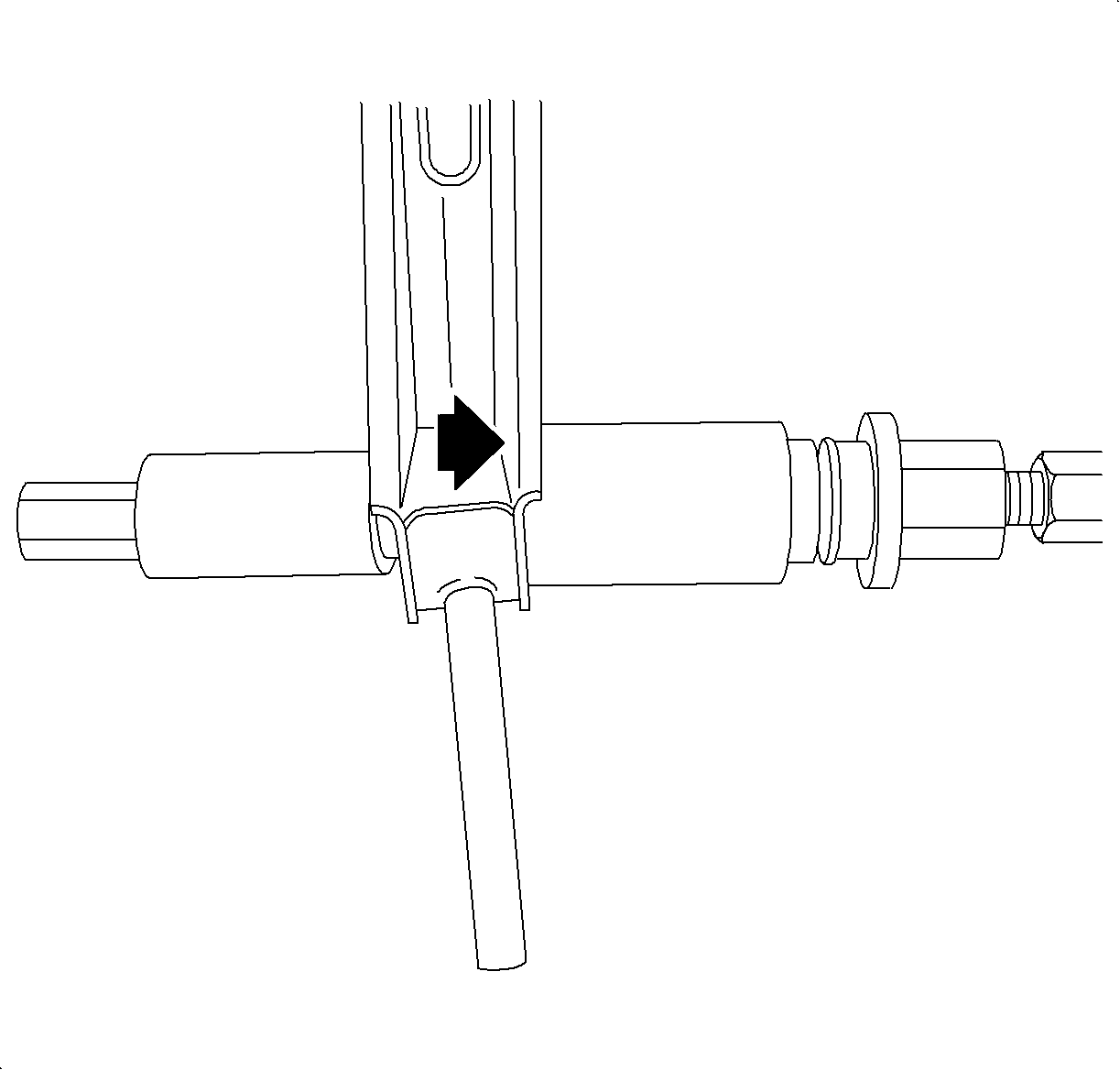

Object Number: 891524 Size: SH
Click here for detailed picture of above image.

Using KM-906-70, KM-906-31, KM-906-32, and KM-906-34, remove the control arm bushings.

Assembly Procedure

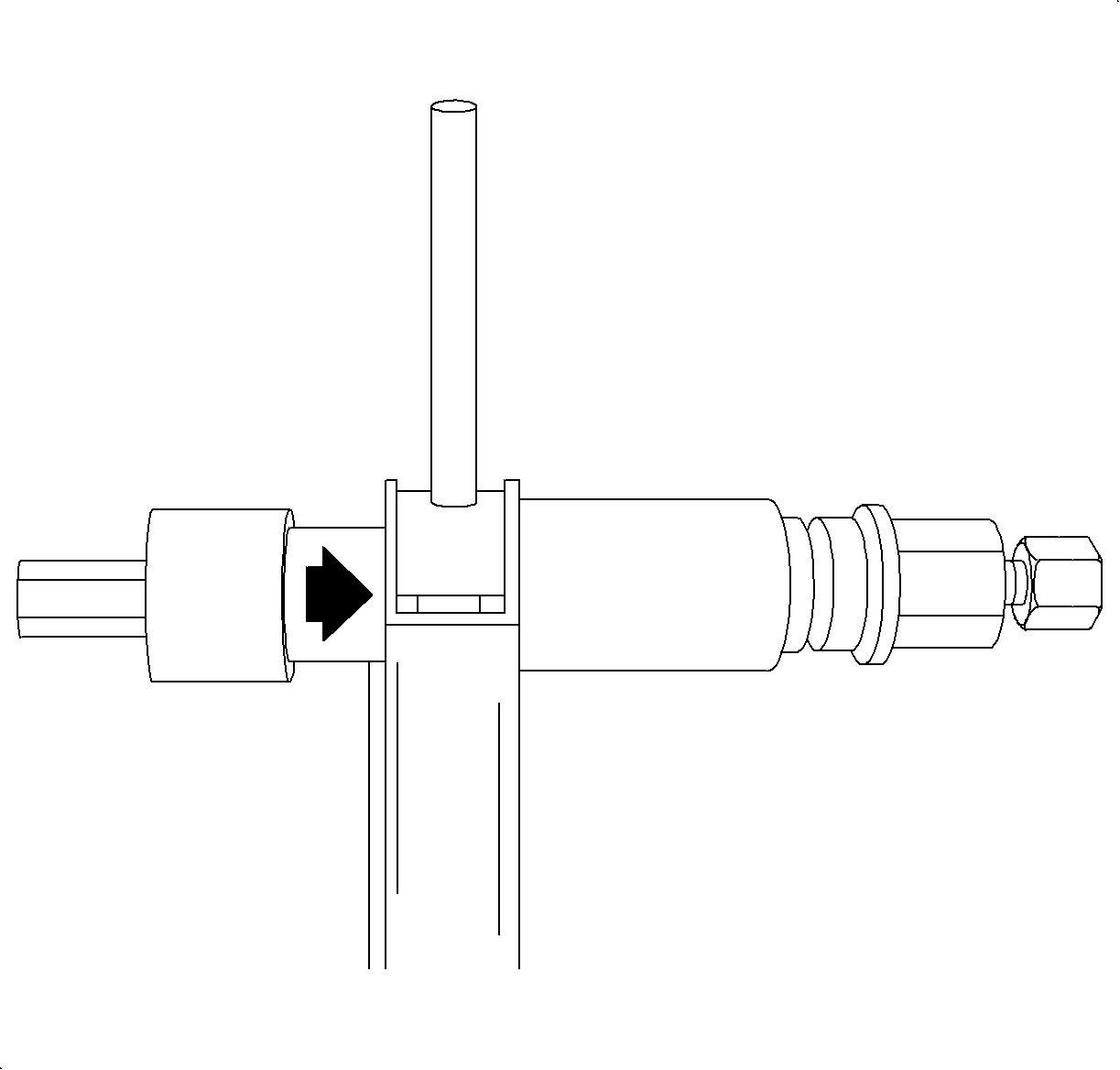

    Object Number: 891527 Size: SH
    Click here for detailed picture of above image.
  1. Using KM-906-70, KM-906-33, KM-906-35, and KM-906-34 wedge to press in the new damping bushing.

    2. Object Number: 891523 Size: SH
    Click here for detailed picture of above image.

    Important

    A new nut and bolt must be used. Tighten retention of the old nut and bolt may not be sufficient.

  2. Install the control arm to the rear suspension support using a NEW nut and bolt. Hold the bolt stationary while tightening the nut.
    3. Tighten

    Tighten the rear suspension control arm-to-rear suspension support to 90 N·m (66 lb ft) + 60-75 degrees.

  3. If installing a new crossmember, loosen the nut and bolt and re-tighten to specification.
    4. Tighten

    Tighten the crossmember nut and bolt to 90 N·m (66 lb ft) + 60-75 degrees.

  4. Install the rear suspension support into the vehicle.
