High Mounted Stop Lamp Replacement Wagon

Removal Procedure

1. Open the lift gate.

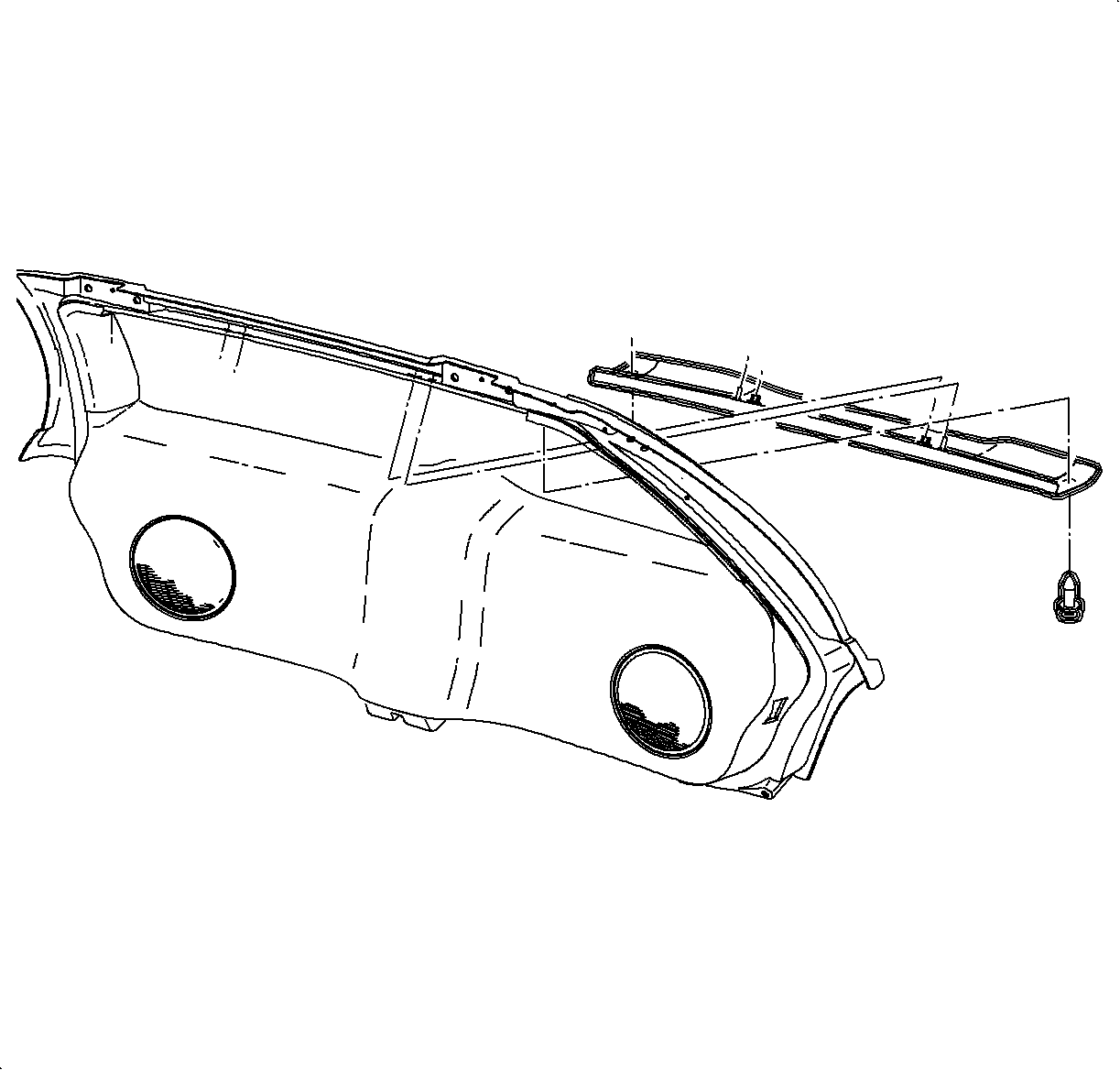

2. Remove the plastic fasteners to the upper garnish molding by pushing the center of the fastener in.
3. Remove the molding.
4. If removing the bulbs, twist the sockets out of the stop lamp and remove the bulbs.
5. Disconnect the electrical harness.
6. Remove the center high mount stop lamp by removing the retainer screws.

Installation Procedure

Notice

Refer to Fastener Notice in Cautions and Notices.





1. Install the center high mount stop lamp with the screws.
Tighten

Tighten the center high-mount stop lamp (Sedan/Wagon) to 2.5 N·m (19 lb in).

2. Connect the electrical harness.
3. Install the upper garnish molding with the plastic fasteners.
4. Close the lift gate.
