1998 Saturn SL2/SC2/SW2

Lock Striker Replacement - Rear Compartment Lid

Removal Procedure

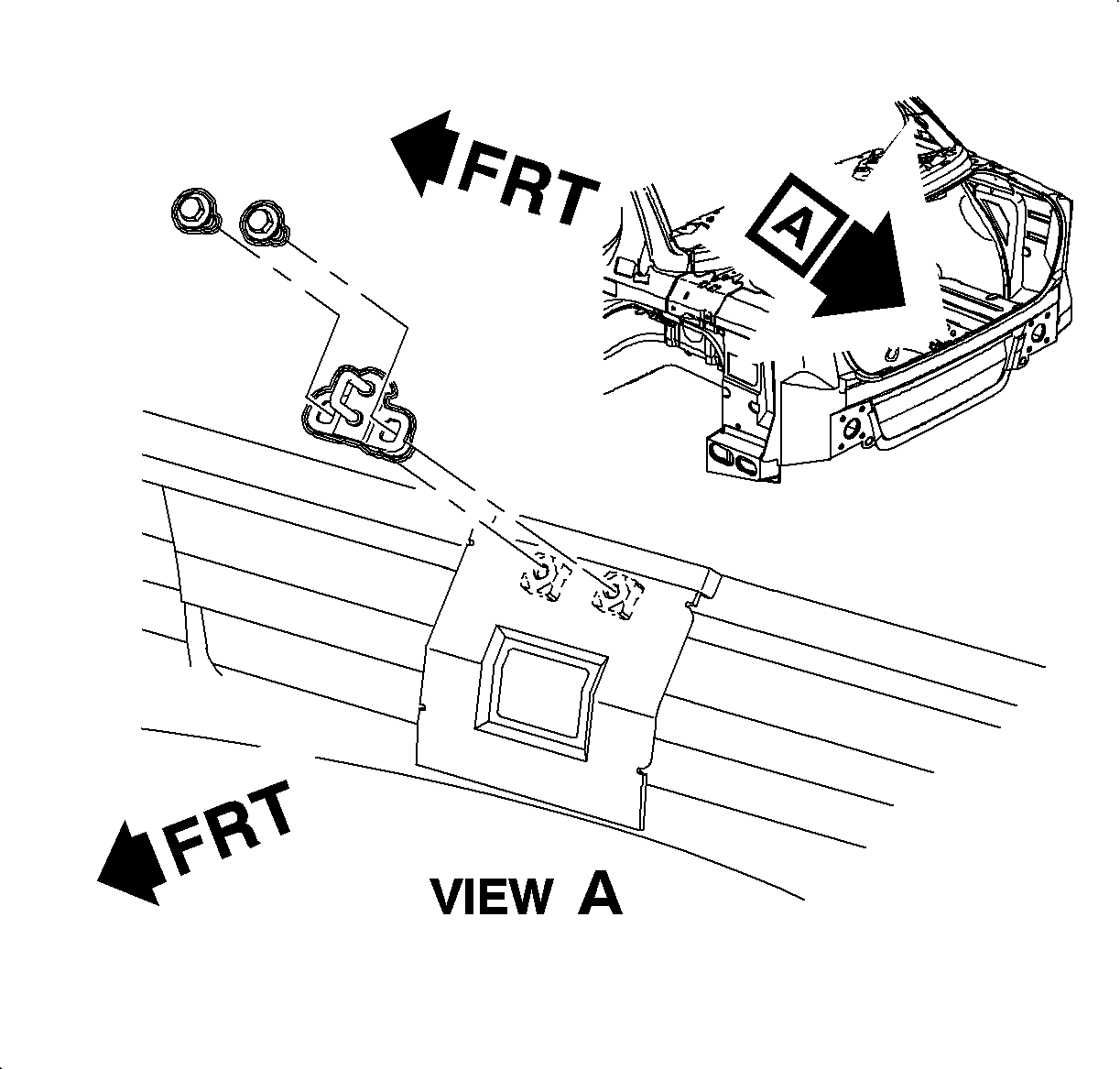

    Object Number: 864518 Size: SH
    Click here for detailed picture of above image.
  1. Mark around the striker with a grease pencil to retain the position.
  2. Remove the screws and the striker.
Installation Procedure
  1. Position the striker on the vehicle and loosely install the screws.
  2. Carefully close the rear compartment lid and inspect the alignment. Adjust up and down or left and right.
