Service Port Valve Core Replacement

SA9149AC-7 Core Valve Replacer

Removal Procedure

1. Discharge the refrigerant system using an approved refrigerant recovery system.

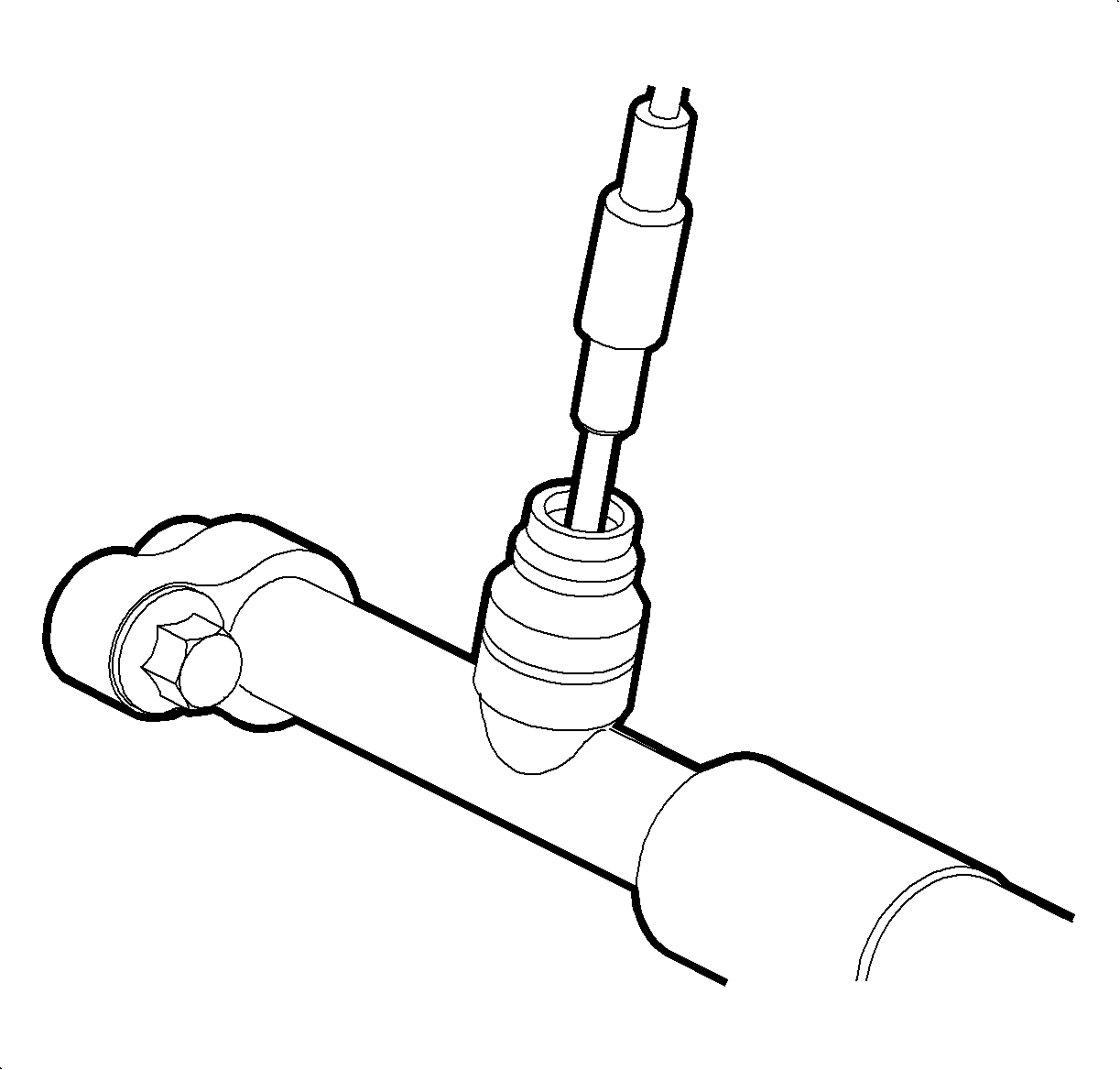

2. Remove the valve core using the Core Valve Replacer SA9149AC-7 .

Installation Procedure

1. Install and tighten the valve core using SA9149AC-7 Core Valve Replacer.

Notice

To prevent loss of refrigerant charge, make sure to install and tighten cap. Replace cap if seal is missing or damaged.

2. Evacuate, charge, and leak test the A/C system.
