License Bracket Replacement - Front Coupe

Removal Procedure

1. Remove the license plate screws and the license plate.

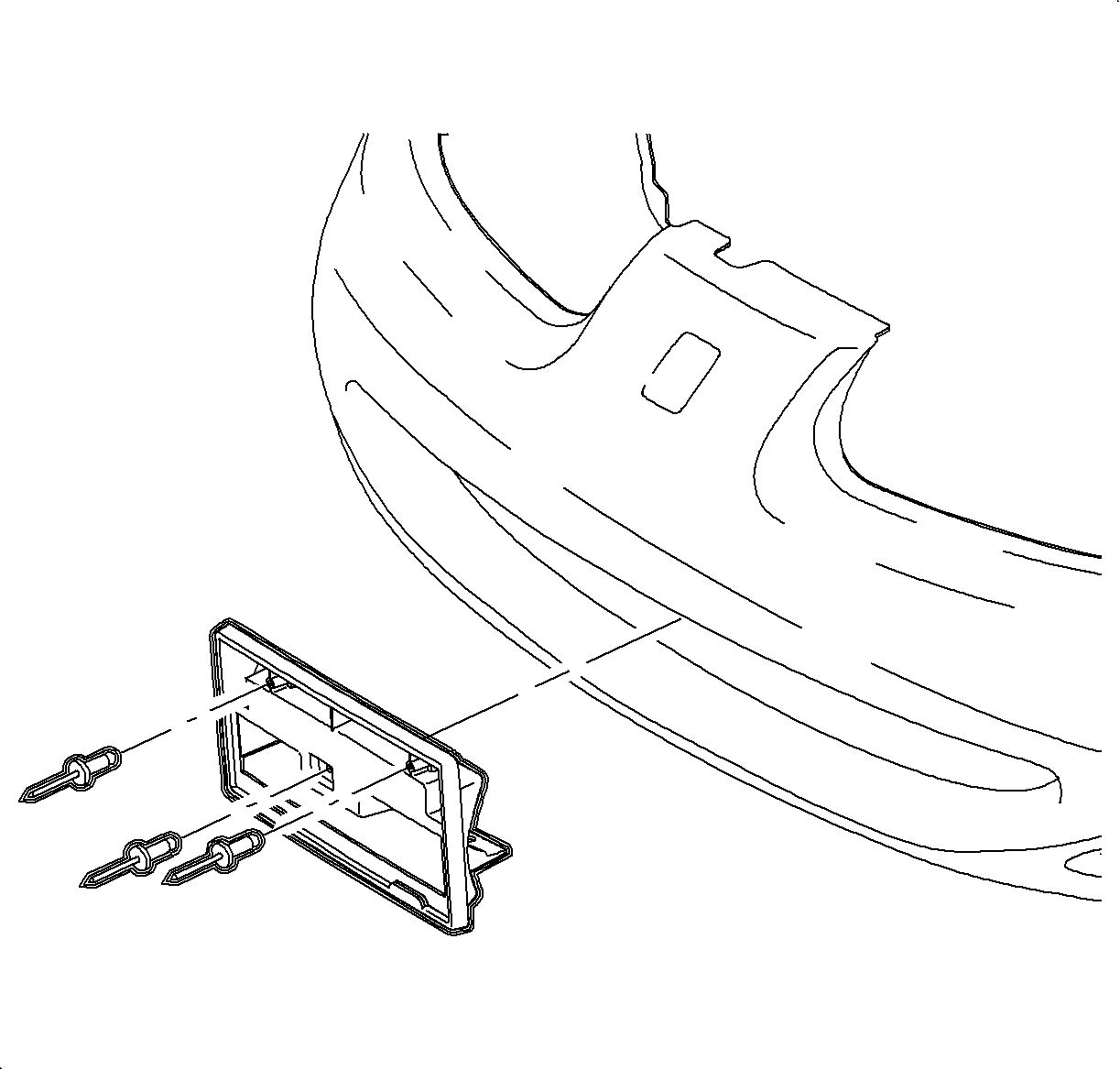

2. Remove the rivets attaching the license plate bracket to the front fascia.

Installation Procedure

1. Position the license plate bracket to the front fascia and install the fasteners.

Important

If this is a first time installation, drill 6 mm (0.24 in) hole at dimple on centerline of the lower fascia. Position the bracket to the fascia and install the bottom rivet. Drill two top holes, using the bracket as a template, and install the rivets.

2. Install license plate to bracket with screws.
