Ensure that the vehicle is properly supported and squarely positioned.
To help avoid personal injury when a vehicle is on a hoist, provide additional support
for the vehicle on the opposite end from which the components are being removed.
Raise vehicle on hoist.
Place approved drain container under power steering hoses at steering gear.
Disconnect power steering hoses from the steering gear.
Important
After removing power steering hoses from gear, do not rotate steering wheel
since fluid will be forced out of gear.
Remove power steering hoses from steering gear and allow system to drain.
Use a box end wrench to relieve spring tension from accessory drive belt tensioner;
remove belt from power steering pump pulley.

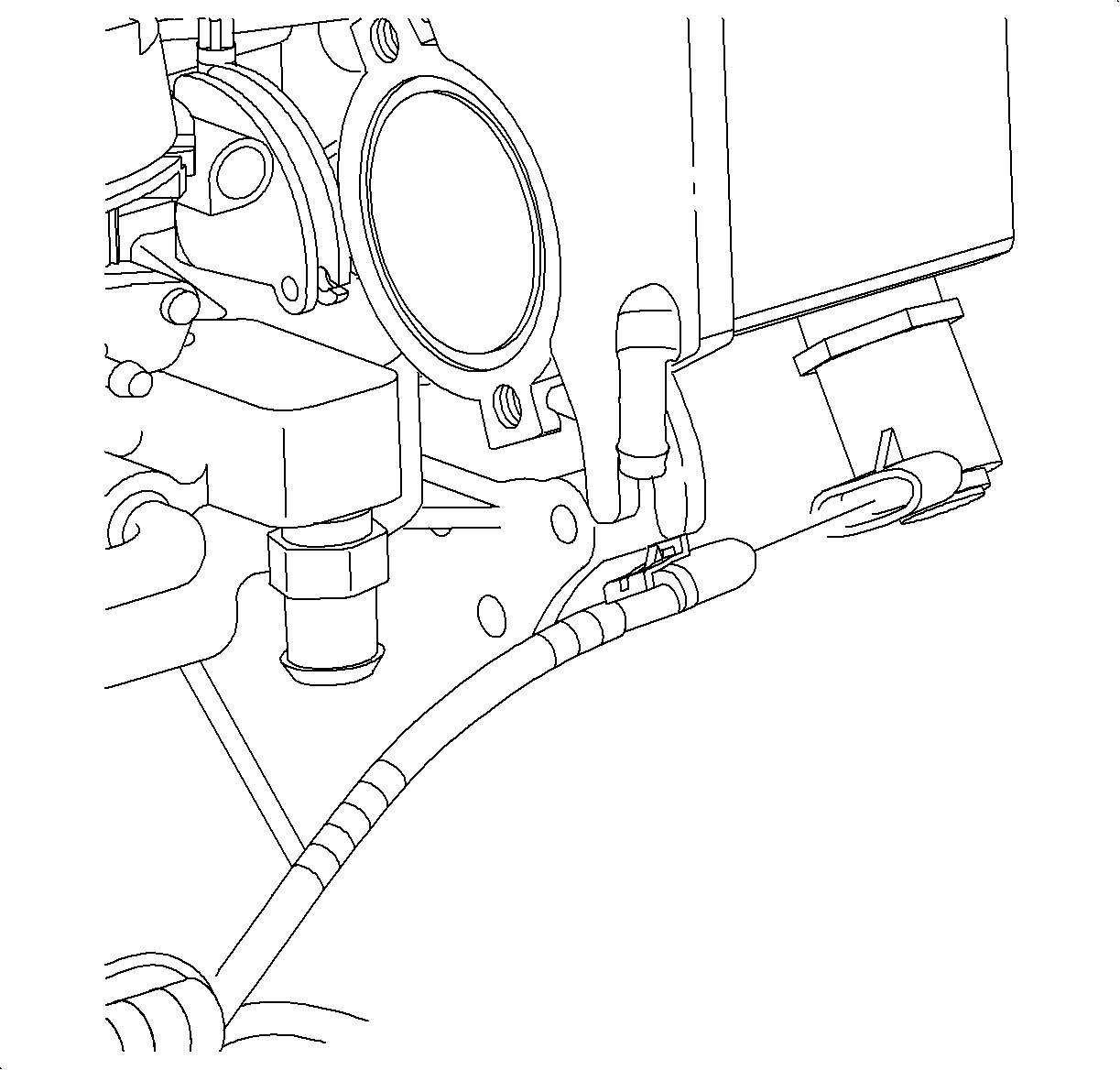

On vehicles equipped with variable assist, disconnect EVO electrical connector.
Important
It is not necessary to remove the three power steering pump bracket to engine
block bolts.

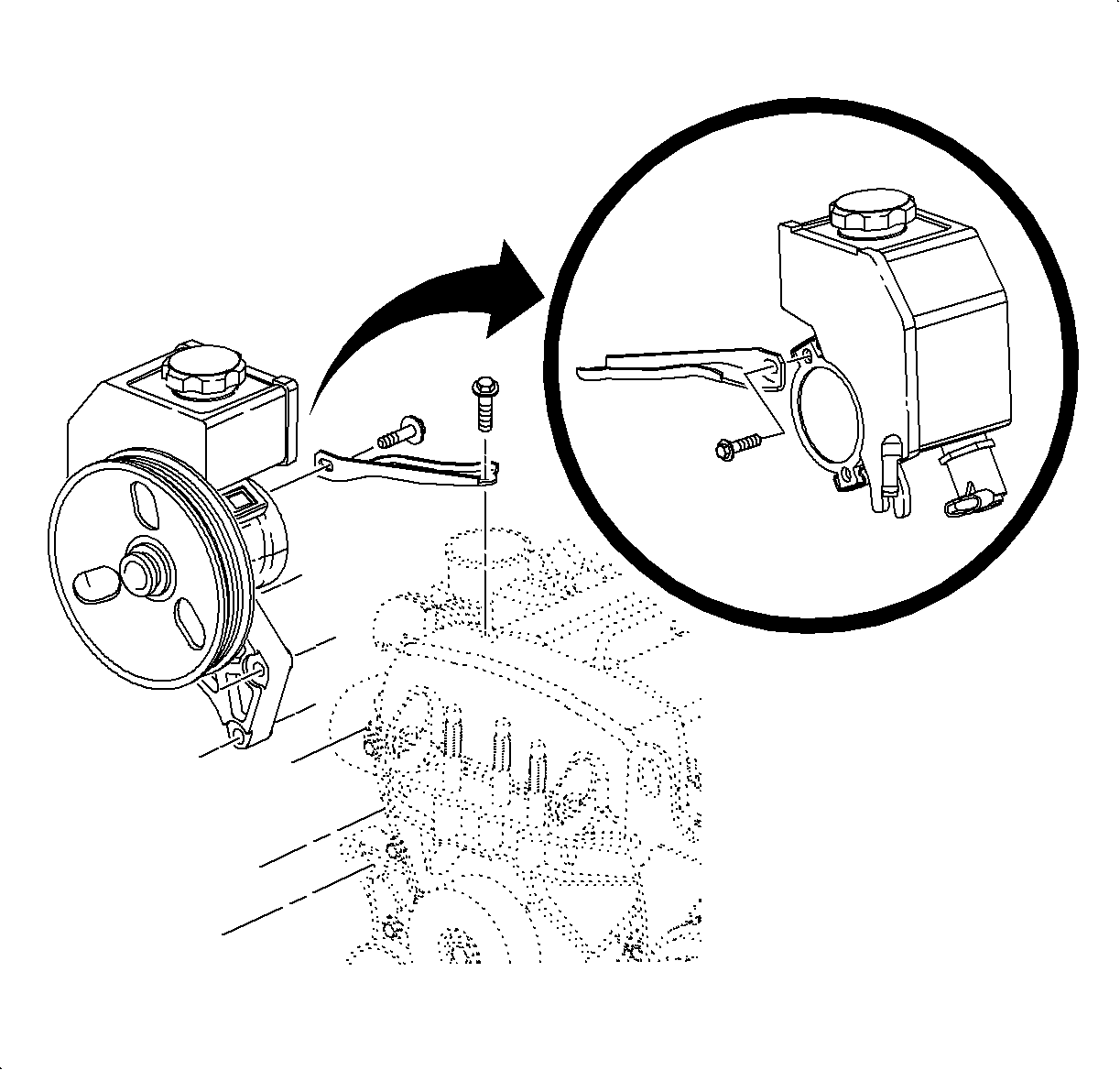

On DOHC (LL0) engine, loosen upper power steering pump bracket bolt at cylinder
head.
Remove upper power steering pump bracket bolt at power steering pump.
Swing bracket aside.

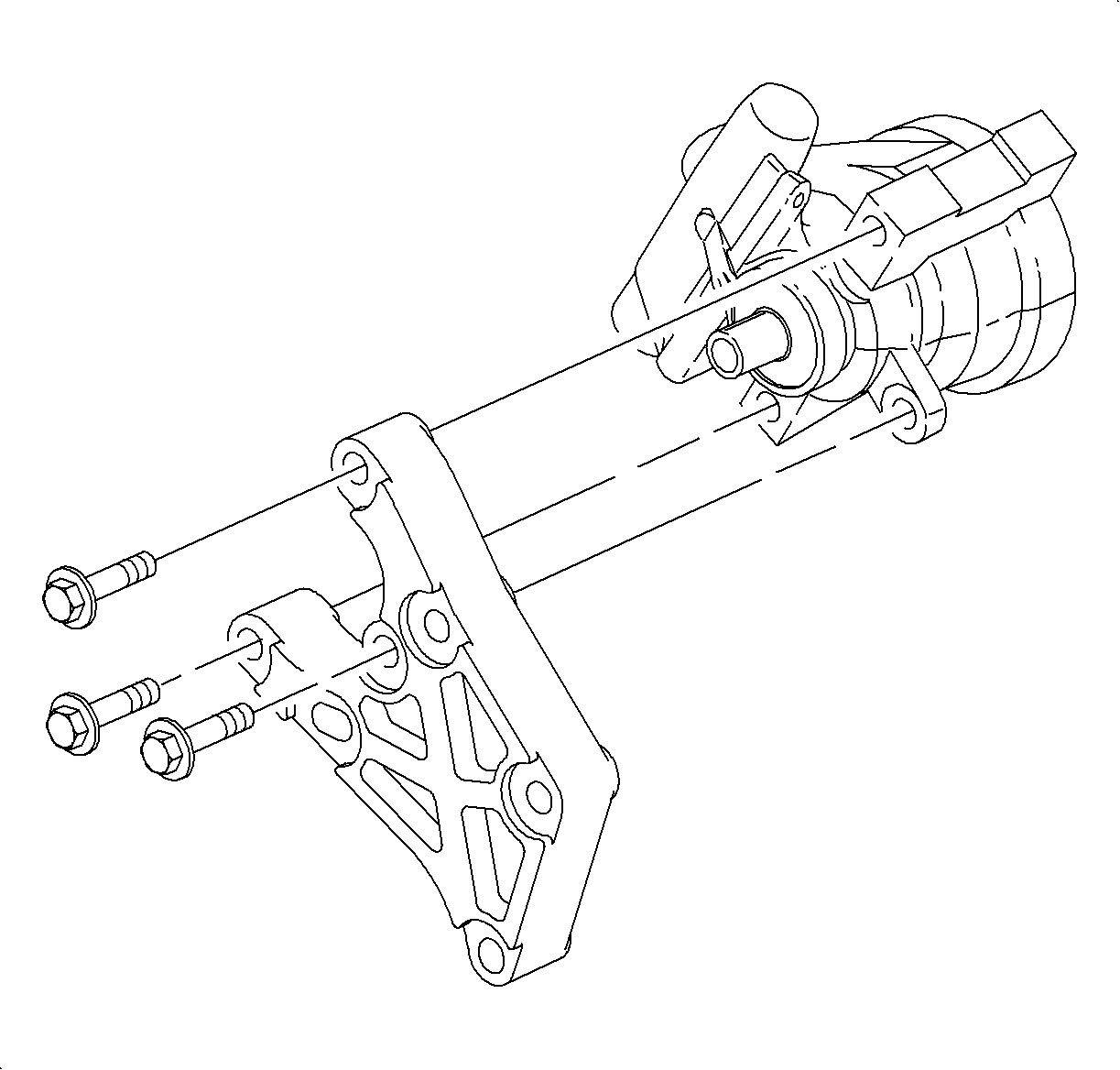

Remove three power steering pump-to-bracket bolts only. Obtain access to bolts
by rotating power steering pump pulley.
Inspect O-ring seals on each end of the pressure hose and on the gear end of
the return hose and replace if necessary. Install pressure and return hoses onto
pump.
Tighten
Tighten Power Steering Hoses-to-Steering Pump 27.5 N·m (20 lbs ft).
Important
Do not tighten any of the bolts until all bolts have been started.
Position pump with hose against cylinder head and loosely install all bolts.
Install the power steering pump bracket-to-cylinder head support brace bolts first
on the DOHC (LL0) engine.
Torque the three power steering pump-to-bracket bolts.
Tighten
Tighten Power Steering Pump-to-Bracket Bolt 30 N·m (22 lbs ft).
On the DOHC (LL0) engine, torque the support bracket bolt to power steering
pump first; then torque the upper support bracket bolt at the cylinder head.
Tighten
Tighten Power Steering Pump-to-Bracket Bolt 30 N·m (22 lbs ft).
On vehicles equipped with variable assist, connect the EVO electrical
connector.
Caution
Ensure that the vehicle is properly supported and squarely positioned.
To help avoid personal injury when a vehicle is on a hoist, provide additional support
for the vehicle on the opposite end from which the components are being removed.
Raise vehicle on hoist.
Install pressure and return hoses into steering gear.
Tighten
Tighten Power Steering Hoses-to-Steering Gear 27.5 N·m (20 lbs ft).
Route hoses into the steering gear hose retaining clip, return hose first,
pressure hose next. Secure hose in clip.
Lower vehicle from hoist.
Notice
Never overfill the power steering pump reservoir. Overfilling may cause contamination
to accessory drive belt, generator, etc., resulting in premature failure.
Fill power steering pump fluid reservoir with clean power steering
fluid. Install reservoir fill cap.
