1998 Saturn SL2/SC2/SW2

Park Brake Cable Equalizer Replacement

Removal Procedure

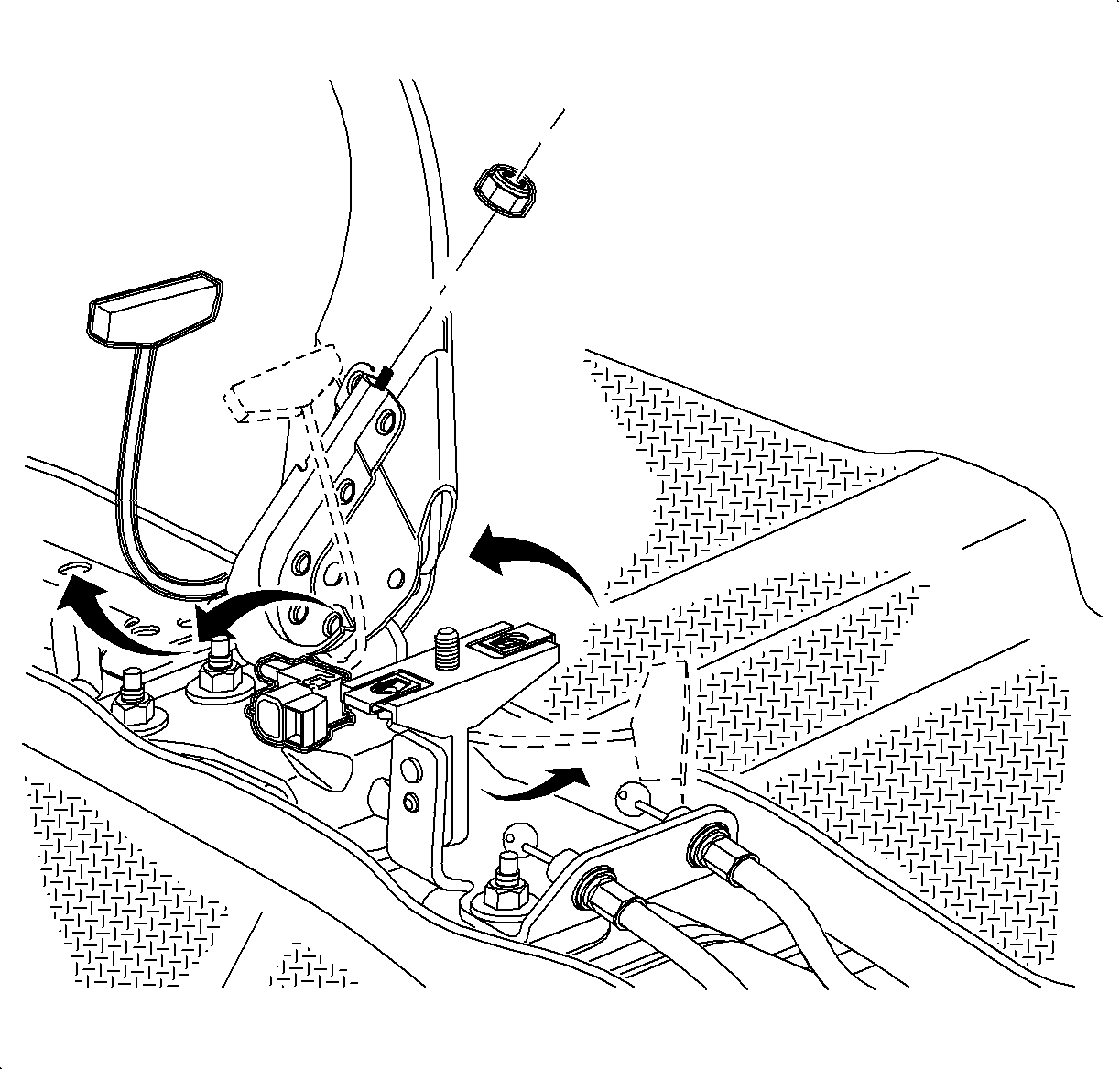

    Object Number: 904856 Size: SH
    Click here for detailed picture of above image.
  1. Disable the SIR System.
  2. Remove console.
  3. Remove park brake adjuster nut.
  4. Remove park brake cables from equalizer assembly.
  5. Pull park brake lever to highest position.
  6. Lift equalizer cable over park brake indicator switch and swing forward. Pull cable down and out of park brake lever.
Installation Procedure

    Object Number: 904856 Size: SH
    Click here for detailed picture of above image.
  1. Slide equalizer cable into park brake lever. Hand start adjuster nut.
  2. Swing equalizer cable rearward and lift over park brake indicator switch.
  3. Release and lower park brake lever fully.
  4. Install both park brake cables into equalizer.
  5. Adjust park brake.
  6. Install console.
  7. Enable the SIR system.
