1998 Saturn SL2/SC2/SW2


Compartment Lid Outer Panel - Rear Coupe

Removal Procedure
  1. Remove the rear reflex. Refer to Compartment Lid Center Reflex - Rear .
  2. Remove the outer screws attaching the bottom of the lid lower panel to the compartment lid.
  3. Remove the compartment lid center panel.
Installation Procedure
  1. Position the lid lower panel on the compartment lid.
  2. Install the attachment bolts.

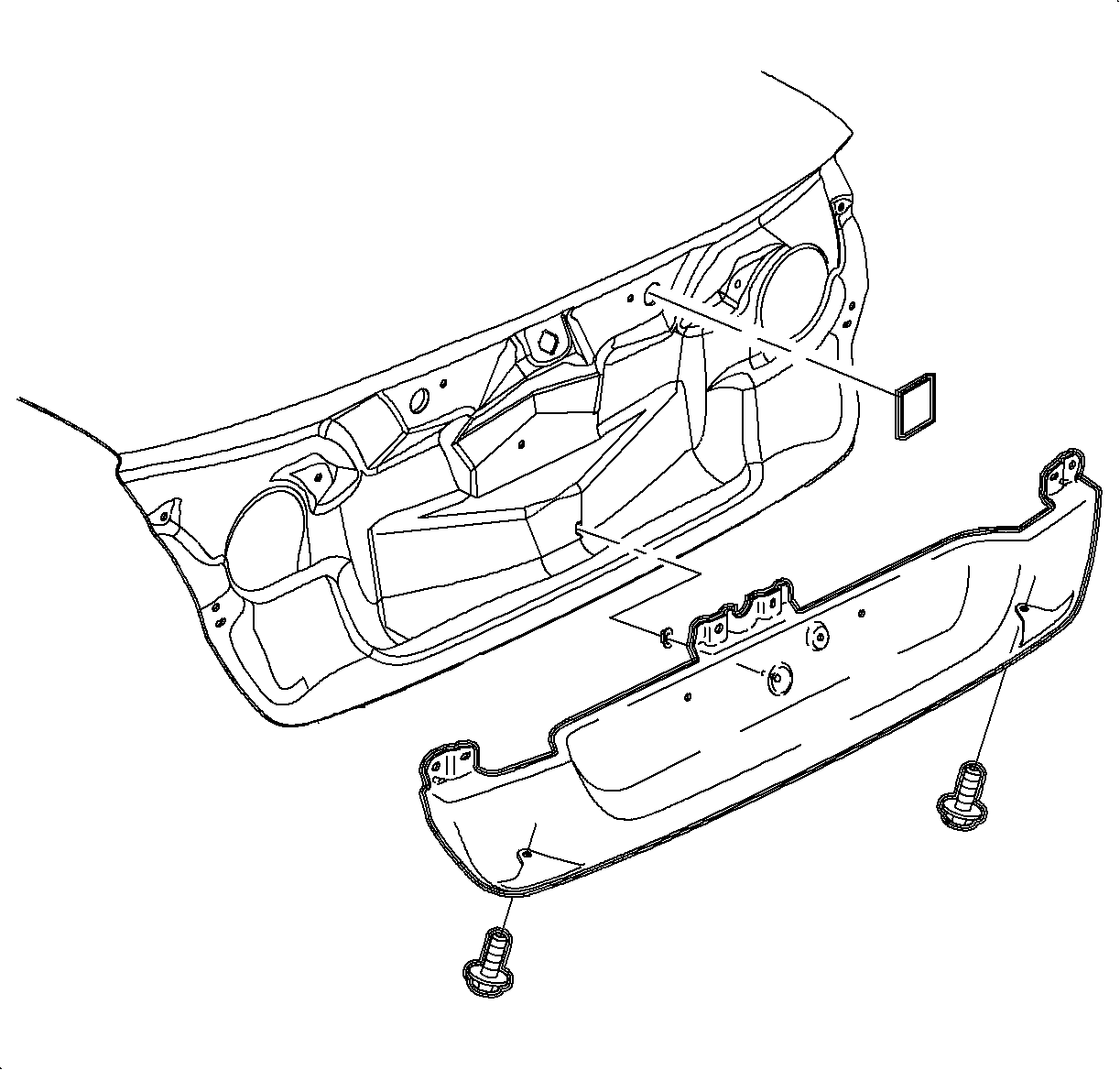

  3. Object Number: 866312  Size: SH
    Click here for detailed picture of above image.
  4. Install the rear reflex. Refer to Compartment Lid Center Reflex - Rear .
  5. Inspect the alignment of the rear reflex.
