Water Deflector Replacement - Rear Door Sedan/Wagon

Removal Procedure

1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

Caution

If energy absorber is removed or damaged it must be replaced with a new part. If omitted, the vehicle will not meet federal motor vehicle safety standards (FMVSS), subjecting the retailer to possible civil penalties for making the vehicle inoperative to the FMVSS, and increasing the risk of injury to the vehicle occupants.

2. Tear at the perforation along the edge of the energy absorber. Remove from the door structure.

Installation Procedure

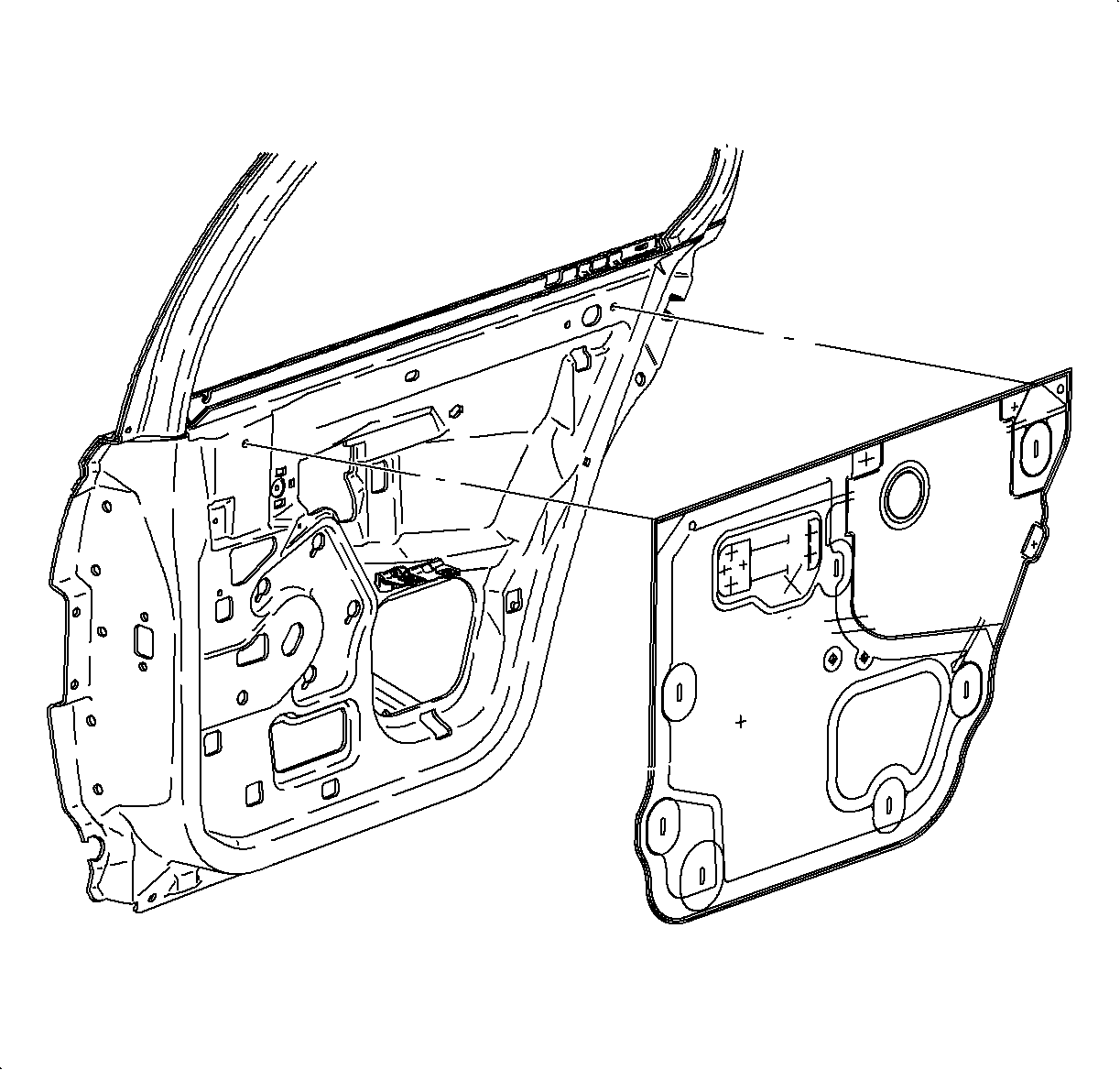

1. Using the dimples at the top edge of the water deflector, attach the water deflector to the door structure. Install the new energy absorber if removed.
2. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
