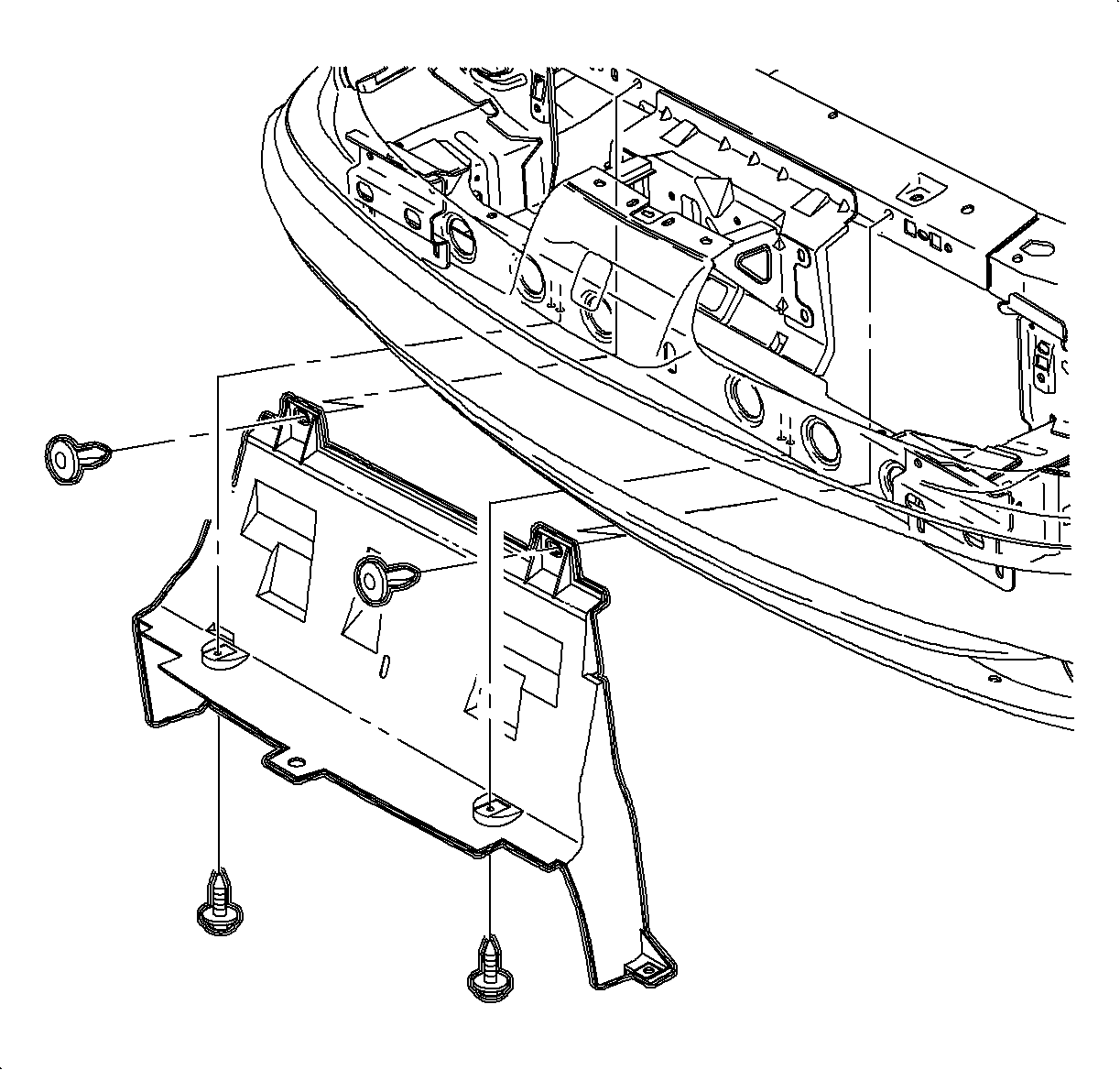

Remove the air
duct to upper tie bar plastic pushpin fasteners.
Remove the lower fascia to air duct and the air duct to air deflector
retaining screws.
Remove the air duct to lower tie bar (vertical attachment) bolts and the
lower air duct by carefully pulling bottom of the lower fascia forward to provide
clearance and remove.
Install the air duct by pulling the lower fascia forward at the bottom
to provide clearance and raise the duct into position by inserting molded pilots on
the air duct into locating holes in the lower tie bar.
Install the air duct to the upper tie bar plastic pushpin fasteners.
Install the air duct to lower tie bar (vertical attachment) bolts, lower
the fascia to air duct and air duct to the air deflector retaining screws.
