Document ID# 881841
1998 Saturn SL2/SC2/SW2

Wedge Plate Replacement - Lift Gate

Removal Procedure

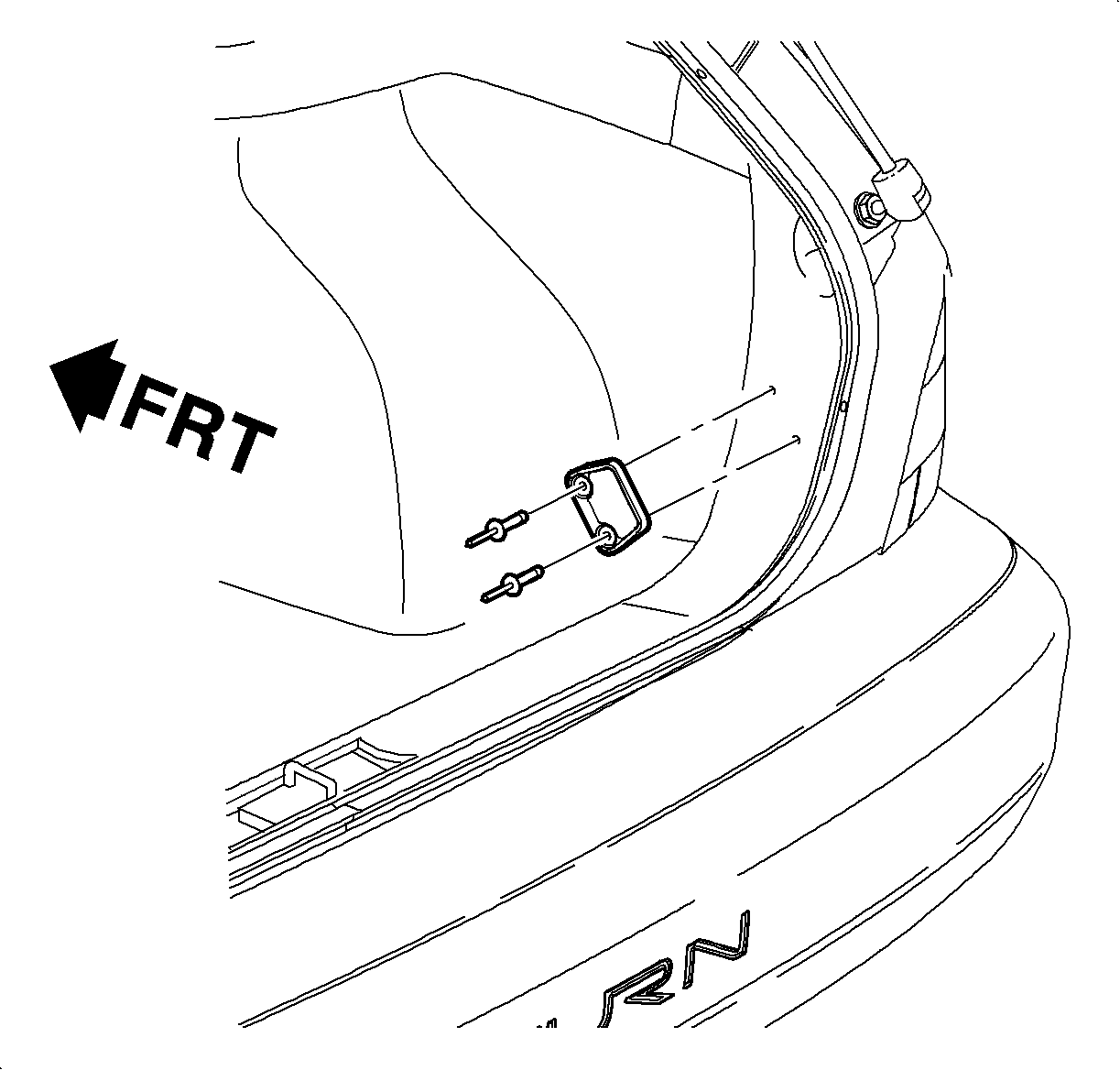

    Object Number: 864152 Size: SH
    Click here for detailed picture of above image.
  1. Open the lift gate.
  2. Drill the rivets from the wedge plate.
  3. Remove the wedge plate.
Installation Procedure
  1. Position the wedge plate on the lift gate opening.
  2. Install the rivets.
  3. Close the lift gate.
