Seat Belt Retractor Replacement - Rear Sedan

Removal Procedure

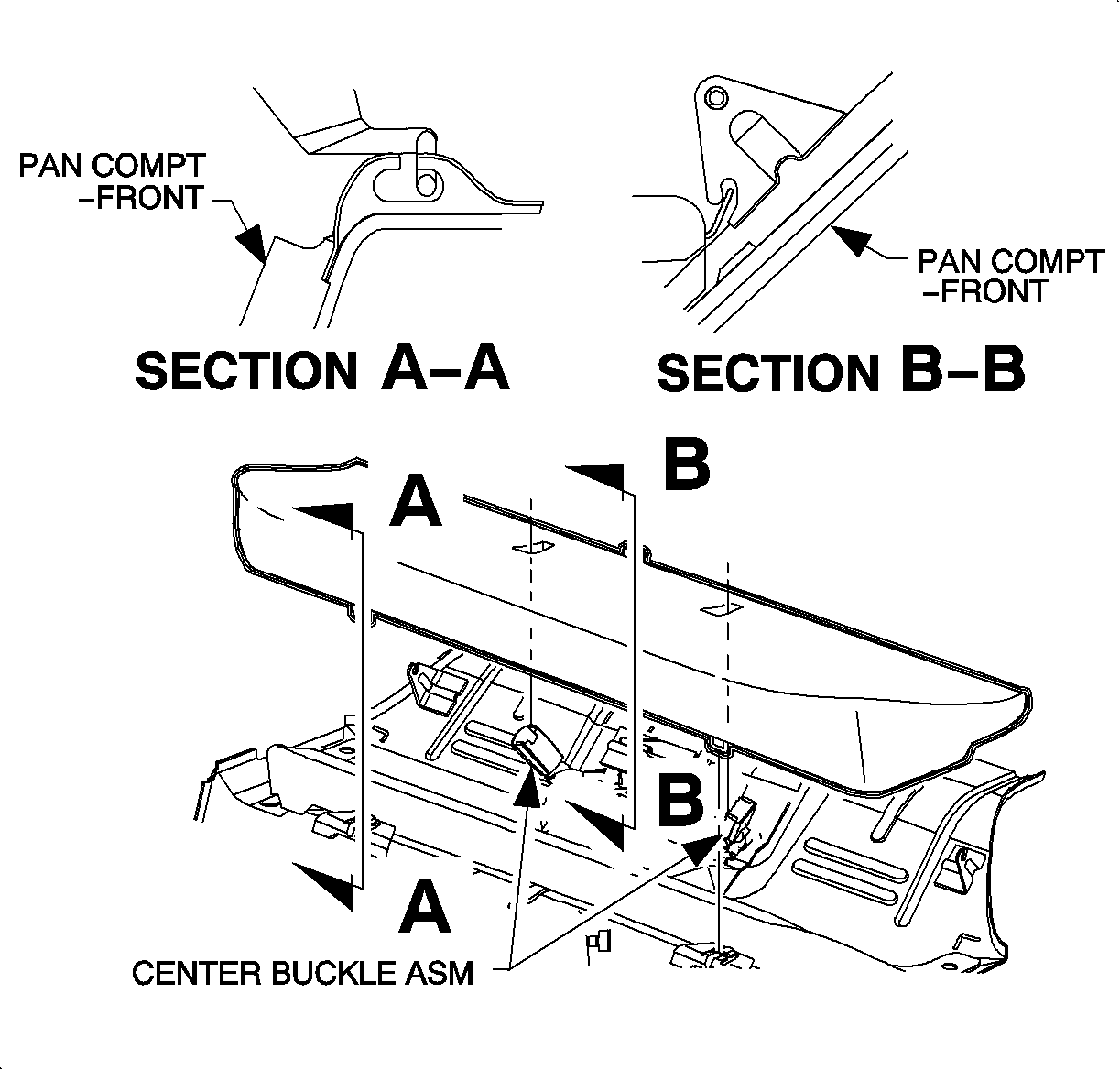

1. Remove the rear seat cushion.

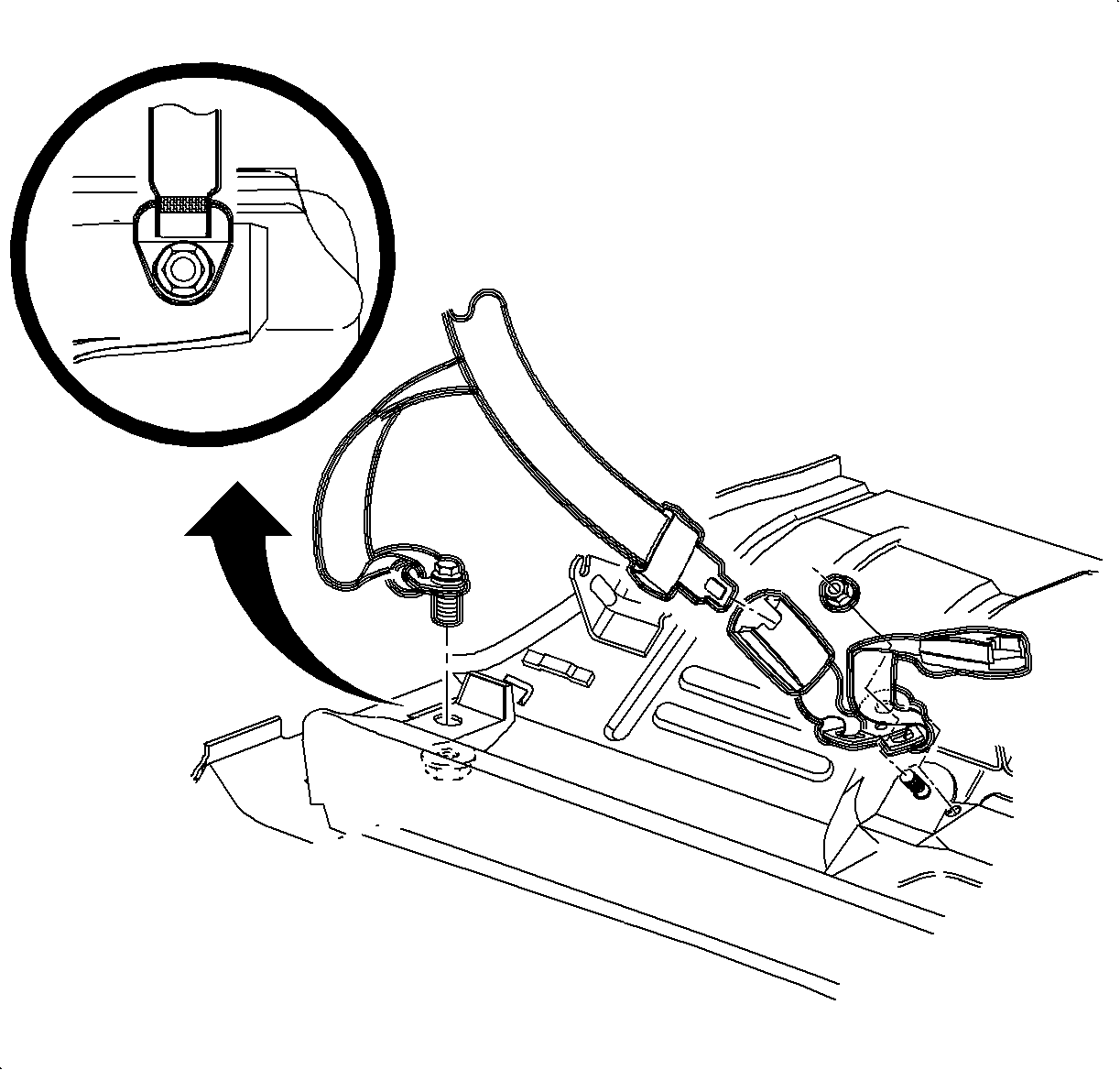

2. Remove the shoulder belt harness anchor bolt from floor pan.

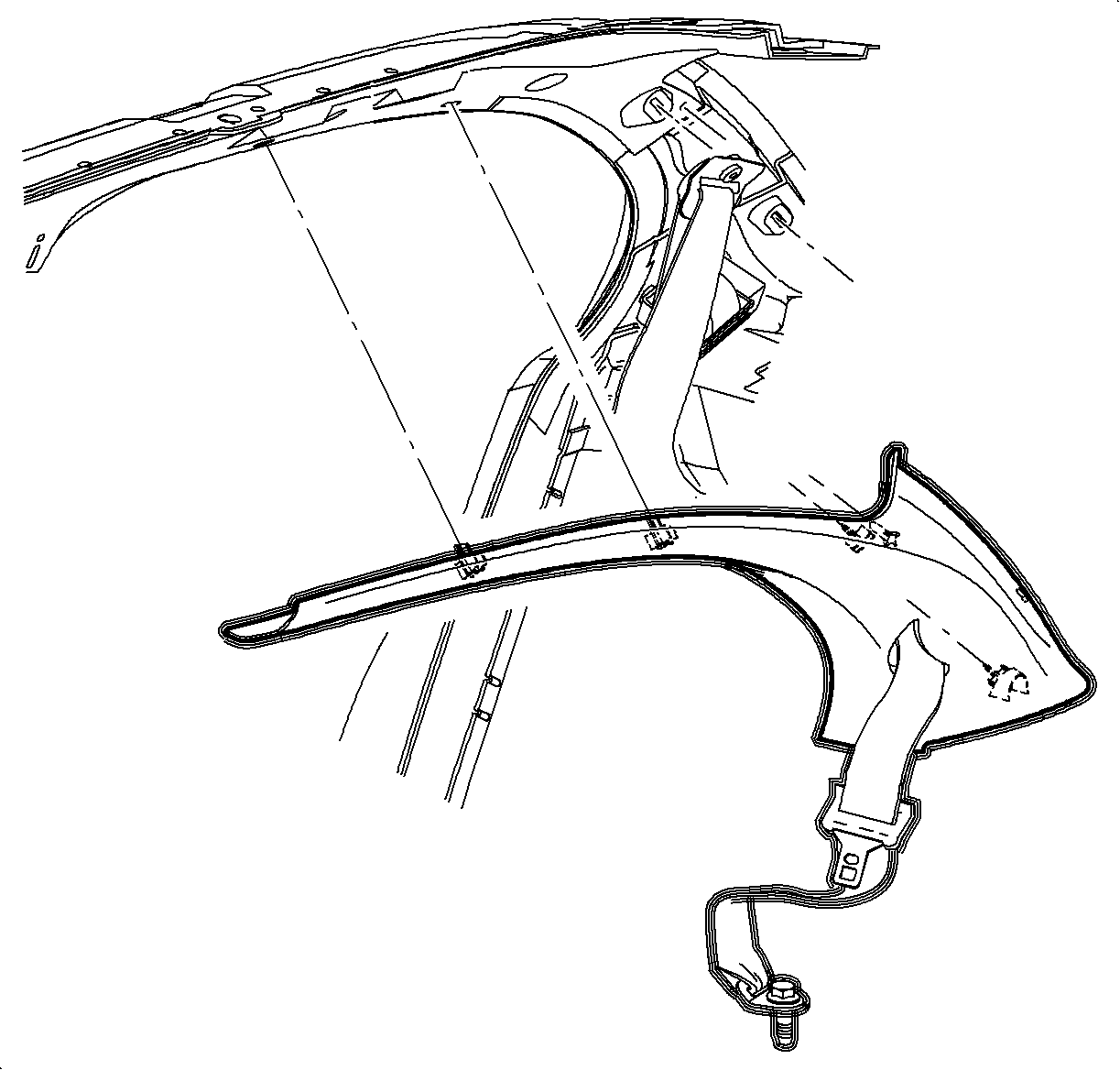

3. Remove the body lock pillar upper molding.




4. Remove the rear window trim finish panel.




5. Remove the shoulder belt retractor fastener from quarter inner upper panel.

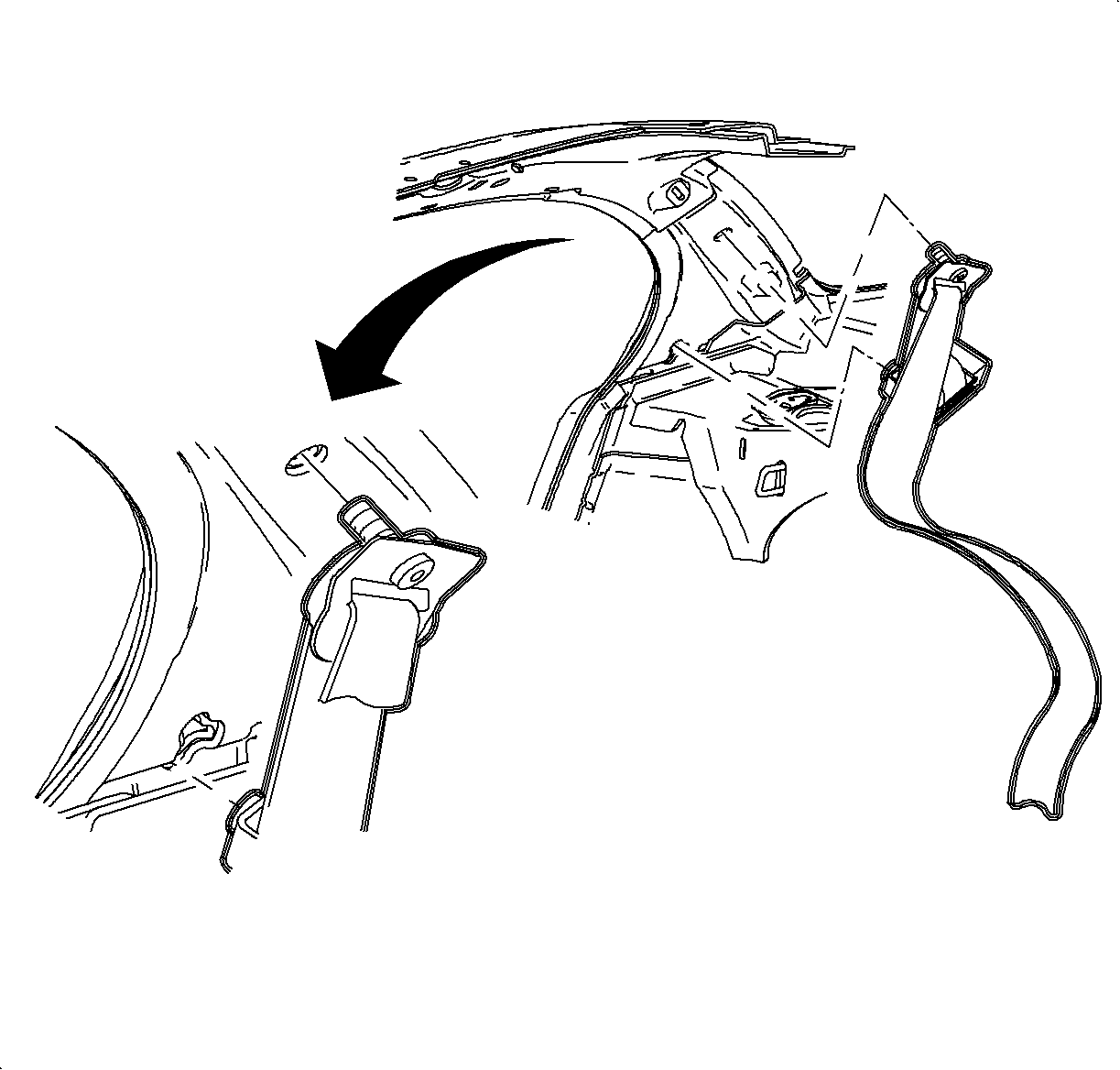

6. Push down on the shoulder belt retractor to disengage the shoulder belt pin and remove the shoulder belt assembly.

Installation Procedure

Important

Apply LOCTITE 242®, or equivalent, on all restraint fasteners prior to installation.

1. Position the shoulder belt retractor assembly to quarter inner upper panel, inserting pin on restraint into hole in panel.
2. Swing assembly up and push up until the shoulder belt retractor is locked in.

Notice

Refer to Fastener Notice in Cautions and Notices.

3. Align the upper hole and tighten the captured fastener.
Tighten

Tighten the seat belt unit retractor fastener to 50 N·m (37 lb ft).

4. Install the rear window trim finish panel.




5. Route the shoulder belt harness through the body lock pillar upper molding hole and then install the body lock pillar upper molding.




6. Install the shoulder belt harness anchor bolt to the floor pan.
Tighten

Tighten the rear shoulder belt-to-floor bolt to 50 N·m (37 lb ft).





7. Install the rear seat cushion.
8. Check function of the rear shoulder belt to ensure proper operation.
