Seat Back Latch Replacement - Rear Folding SL, SL1, SL2, SC1, SC2, SW2

Removal Procedure

1. Remove the seat back cover. Refer to Seat Back Cover and Pad - Rear Split Folding .

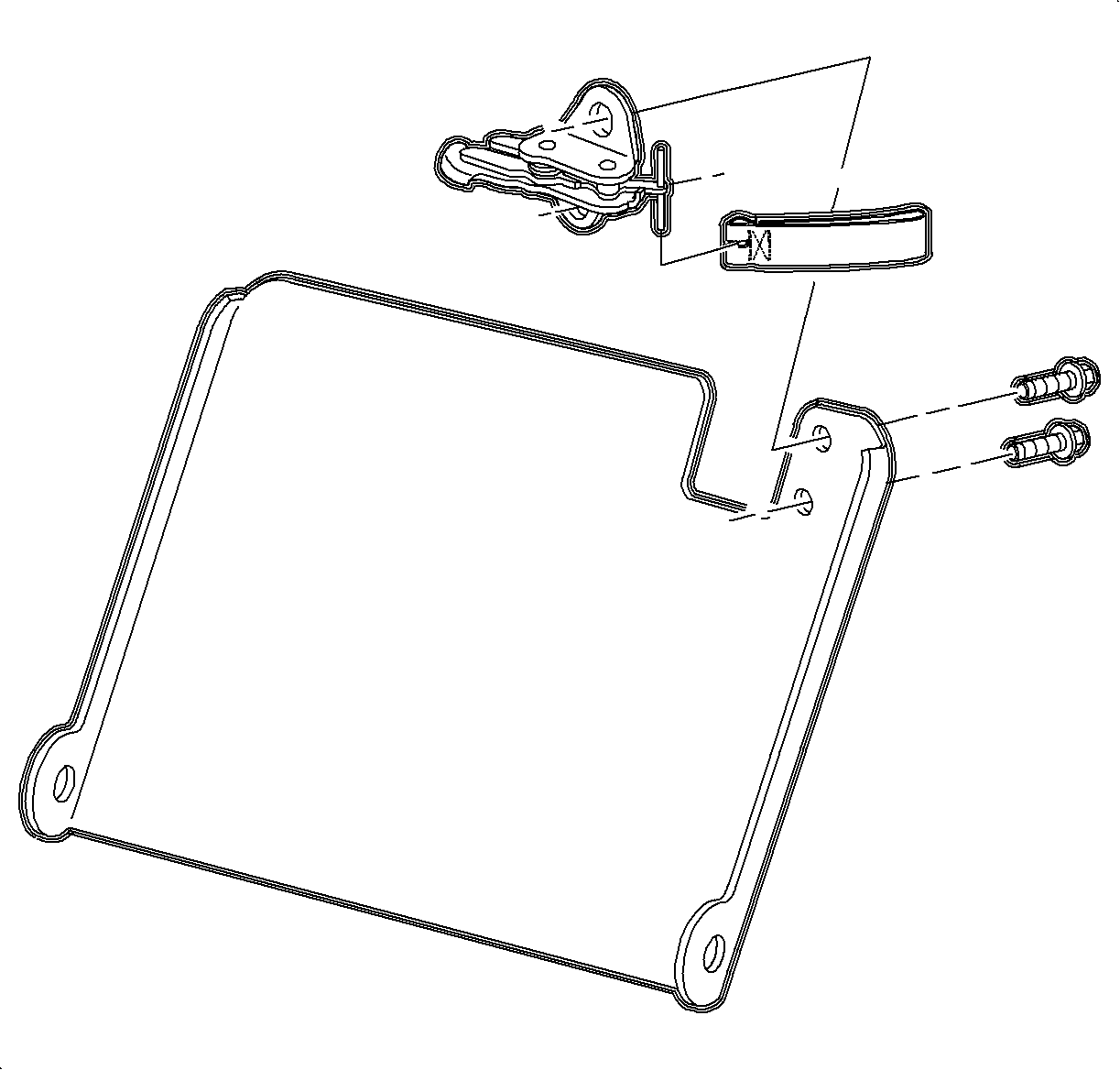

2. Remove the two bolts attaching the seat back latch to the seat frame and remove the latch.

Installation Procedure

1. Apply Loctite 242® Threadlocker P/N 21485277, or equivalent, to the latch bolts.

Notice

Refer to Fastener Notice in Cautions and Notices.

2. Install the seat back latch to the seat back frame with the latch bolts.
Tighten

Tighten the rear folding seat back latch fasteners to 2 N·m (18 lb in).

3. Install the seat back cover. Refer to Seat Back Cover and Pad - Rear Split Folding .
