Window Run Channel Replacement - Rear Door

Removal Procedure

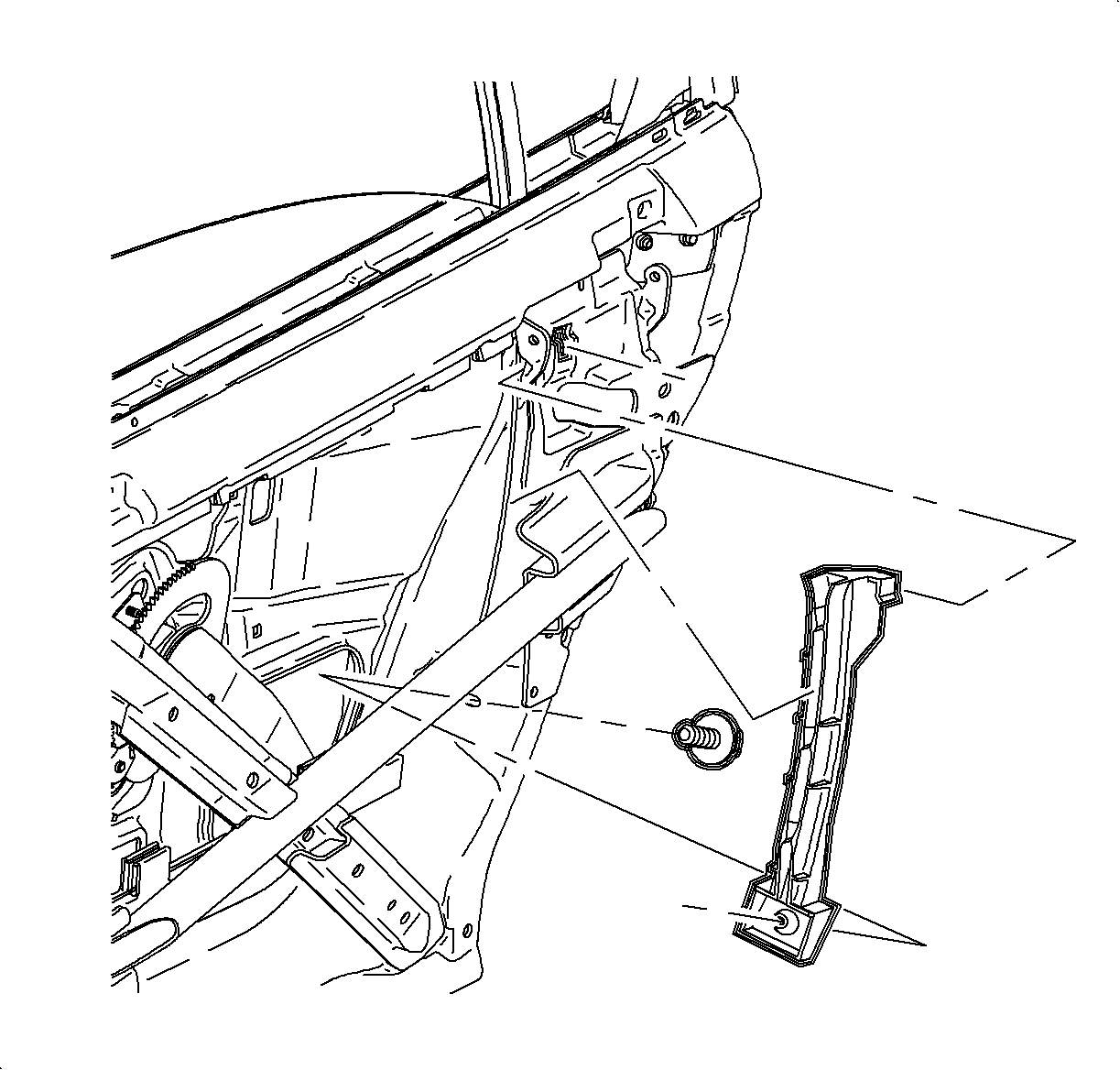

1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door . The outer panel is removed in the illustration to show the location.
2. Remove the exterior bolt and push up to disengage the guide from the door structure pivot area.

Installation Procedure

1. Engage the rear door rear window guide tab into the door structure pivot area.

Notice

Refer to Fastener Notice in Cautions and Notices.

2. Install the bolt into the rear door rear window guide and check for proper operation.
Tighten

Tighten the rear door rear window guide bolts (Sedan/Wagon) to 7.5 N·m (67 lb in).

3. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
