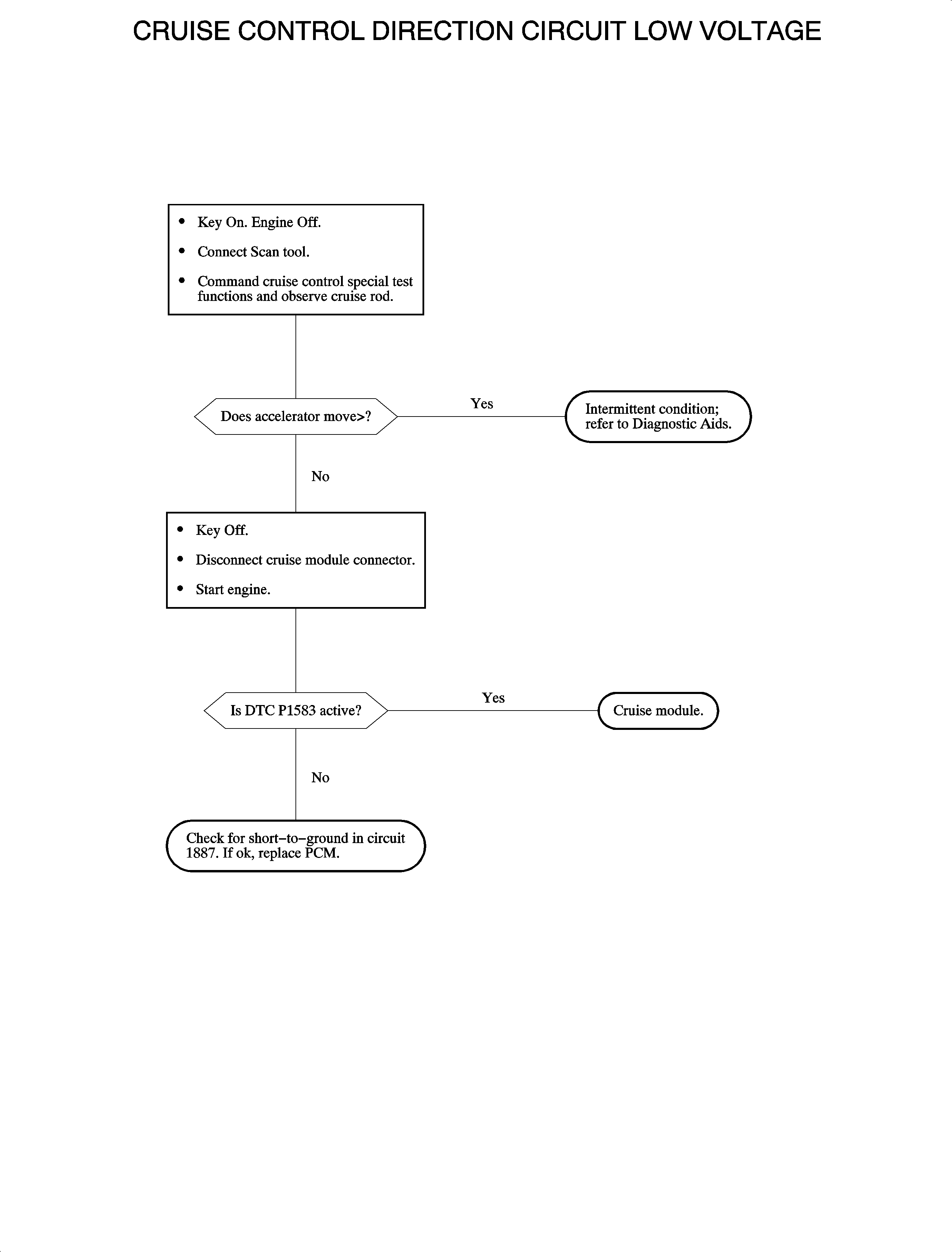

The powertrain control module (PCM) provides approximately 12 volts to the cruise module when movement of the throttle toward wide open throttle (WOT) is desired. At rest, with the QDM driver OFF, the circuit is low and motor direction is driven towards idle. The PCM internal diagnostic feedback monitors circuit 1887 and compares low vs. high as the QDM driver is turned OFF and ON. If the voltage is too low when the QDM driver is turned ON, DTC P1582 will set.
The cruise move circuit is tested continuously
anytime the ignition is ON.Important
DTC P1582 will set if circuit 1887 less than 7 volts when the QDM driver circuit is turned ON.
If an intermittent exists, observe the scan tool parameters while moving connectors and harnesses.
